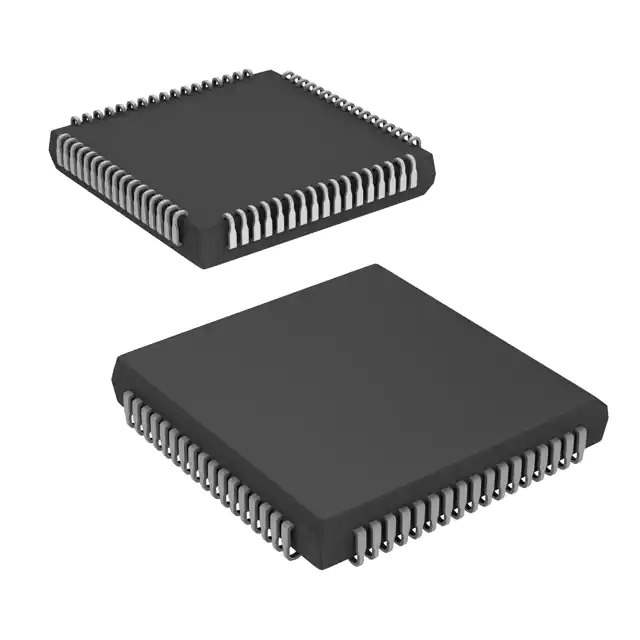

Microchip Technology's ATF1504AS-15JC68 CPLD

The ATF1504AS-15JC68 is a high-performance Complex Programmable Logic Device (CPLD) from Microchip Technology, designed to offer a versatile and efficient solution for a wide range of digital logic applications. This device is part of the ATF1500AS series, which is well-regarded for its low-power consumption and high functionality.

Key Features

• High Density and Performance: The ATF1504AS-15JC68 provides 64 macrocells with 68-pin PLCC (Plastic Leaded Chip Carrier) packaging. It is designed to deliver high-speed performance, making it suitable for implementing complex logic functions in a compact form factor.
• Advanced Architecture: This CPLD features a flexible architecture with programmable AND/OR array and macrocells that can be configured with both combinatorial and registered functions. This allows for the optimization of logic utilization and the creation of complex logic circuits.
• ISP (In-System Programmability): Equipped with in-system programmability, the ATF1504AS-15JC68 can be programmed and reprogrammed while embedded in the end application. This provides tremendous flexibility for design iterations and field upgrades without the need for additional hardware.
• Low Power Operation: The device operates at 5V with a 15ns propagation delay, ensuring a balance between power efficiency and performance. This makes it ideal for battery-operated and power-sensitive applications.
• Security and Reliability: With its user-configurable security settings, the ATF1504AS-15JC68 ensures protection against unauthorized access and copying. Its robust design also guarantees reliable operation over varying conditions.

Applications

The ATF1504AS-15JC68 is suitable for a broad range of applications, including but not limited to:

• Industrial control systems
• Automotive electronics
• Telecommunication infrastructure
• Consumer electronics
• Data processing systems

With its comprehensive feature set, the ATF1504AS-15JC68 from Microchip Technology stands out as a versatile and efficient solution for designers looking to implement complex logic designs with minimal power consumption and maximum reliability.
