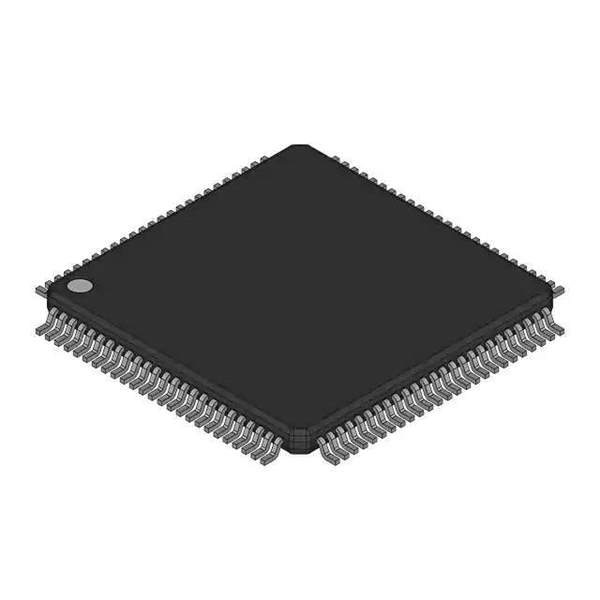

Microchip Technology ATF1504ASL-20AC100 CPLD

The ATF1504ASL-20AC100 is a high-performance Complex Programmable Logic Device (CPLD) manufactured by Microchip Technology. This integrated circuit is part of the Atmel ATF15xxASL series and is designed to meet the needs of high-speed logic integration in a wide range of applications. It features a low-power, high-density architecture that makes it suitable for power-sensitive devices.

With a 20 ns maximum propagation delay time, this CPLD ensures rapid signal processing, which is critical for time-sensitive operations. The device operates within a voltage range of 3 V to 3.6 V, providing a flexible power supply requirement that can accommodate various system designs.

The ATF1504ASL-20AC100 comes in a 44-pin TQFP (Thin Quad Flat Pack) package, which allows for a compact footprint on printed circuit boards (PCBs). This packaging is ideal for space-constrained applications while still offering ample pin access for complex designs.

This Microchip CPLD boasts 64 macrocells that can be configured to implement a wide array of logic functions. These macrocells are interconnected through a versatile, programmable interconnect matrix, enabling the creation of complex logic circuits without the need for multiple discrete components. Additionally, the device features a user-configurable I/O architecture, supporting up to 68 user I/O pins, which provides designers with the flexibility to adapt to various design requirements.

The device is also equipped with an in-system programmability feature, which allows for the device configuration to be updated after it has been installed in a system. This is particularly useful for field upgrades and repairs, ensuring that the system can evolve with changing technological needs without requiring hardware replacement.

In summary, the ATF1504ASL-20AC100 from Microchip Technology is a versatile and efficient solution for designers looking to integrate complex logic functions into their systems. Its combination of speed, low power consumption, and high I/O flexibility makes it an excellent choice for a variety of applications, including automotive, industrial control, telecommunications, and consumer electronics.
