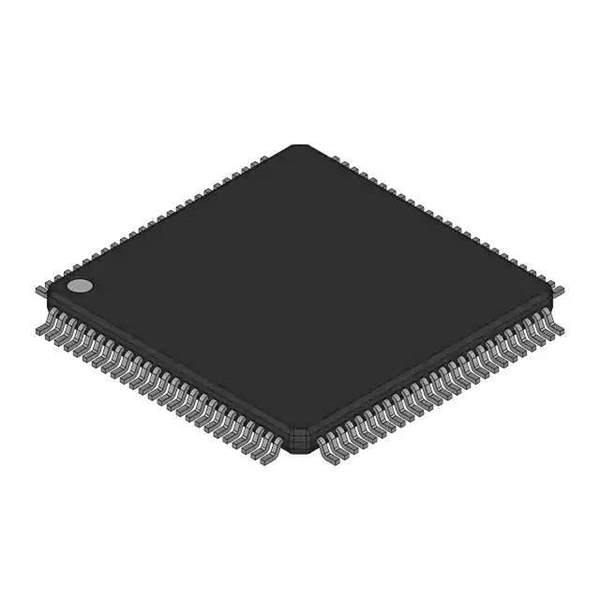

Microchip Technology ATF1508AS-15AC100 CPLD

The ATF1508AS-15AC100 from Microchip Technology is a high-performance Complex Programmable Logic Device (CPLD) designed to meet the needs of a wide range of digital logic system designs. This device is part of the Atmel ATF15xxAS family of CPLDs, which are known for their robustness, reliability, and versatility in various applications, including industrial control systems, automotive electronics, telecommunications, and data processing equipment.

With its 1508 logic elements and 100-pin TQFP (Thin Quad Flat Pack) package, the ATF1508AS-15AC100 offers a compact and efficient solution for implementing complex logic circuits. The device operates at a speed grade of -15, providing a maximum system frequency of 83.3 MHz, which is suitable for high-speed digital applications that require rapid signal processing.

One of the standout features of the ATF1508AS-15AC100 is its user-configurable I/O architecture, which allows designers to tailor the device to their specific I/O requirements. This flexibility ensures that the CPLD can easily integrate with various peripheral components and interface standards. Additionally, the device supports Live at Power-Up (LAPU) functionality, which enables predictable system initialization by ensuring that the I/O pins maintain a known state during power-up.

The ATF1508AS-15AC100 is designed with in-system programmability (ISP) via the industry-standard JTAG interface, which simplifies the design iteration process and allows for easy device updates even after deployment. This feature is particularly valuable for products that may require firmware updates or logic modifications during their lifecycle.

For design security, the ATF1508AS-15AC100 includes security features that prevent unauthorized access and copying of the CPLD configuration. This is crucial for protecting intellectual property and ensuring the integrity of the end product.

In summary, the ATF1508AS-15AC100 CPLD from Microchip Technology is a powerful and flexible solution for designers looking to create sophisticated digital logic systems. With its high logic capacity, user-configurable I/Os, and advanced features such as ISP and security, this CPLD is an excellent choice for a multitude of applications that demand reliability and adaptability.
