Microchip Technology's ATF1508AS-7QC100 CPLD

The ATF1508AS-7QC100 is a high-performance Complex Programmable Logic Device (CPLD) from Microchip Technology, designed to meet the needs of a wide array of applications. This CPLD is part of Microchip's ATF1500AS series and is known for its advanced features and capabilities that make it suitable for implementing logic functions in various electronic systems.

Key Features:

• Logic Elements: The device boasts 128 macrocells that are organized in two logic array blocks (LABs). Each macrocell can be individually programmed, providing designers with the flexibility to implement complex logic functions efficiently.
• High-Speed Performance: With a maximum system frequency of up to 125 MHz, the ATF1508AS-7QC100 is capable of high-speed operation, making it ideal for applications that require quick data processing and real-time performance.
• Non-Volatile Memory: This CPLD utilizes non-volatile memory technology, ensuring that the programmed logic configuration is retained even when the power is turned off. This feature allows for immediate functionality upon power-up, without the need for configuration loading.
• I/O Pins: The device offers 100 user I/O pins, providing ample connectivity for interfacing with other components in a system. This makes it highly versatile and adaptable to various design requirements.
• Power Efficiency: It operates with a low power consumption, which is critical for battery-operated and power-sensitive applications. This efficiency also contributes to reduced system heat generation and improved overall reliability.
• Security: The ATF1508AS-7QC100 comes with security features that protect the intellectual property of the design by preventing unauthorized copying or reverse engineering of the device's configuration.

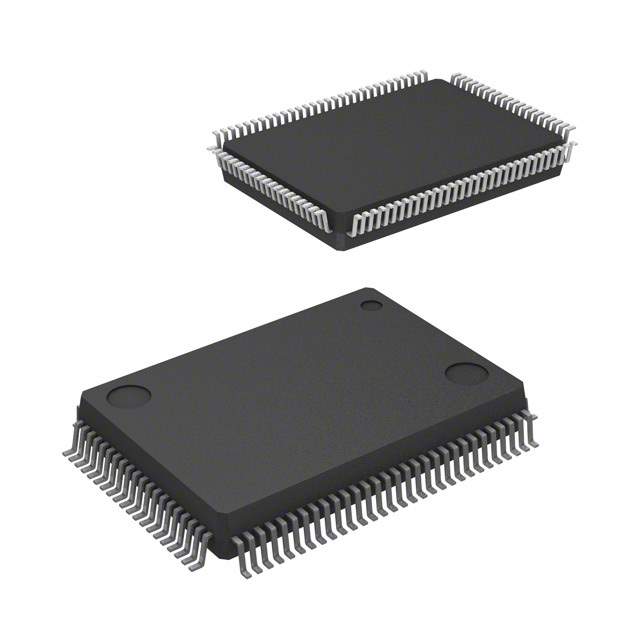

• Package Type: The device is available in a 100-pin Quad Flat Package (QFP), which is suitable for surface-mount technology (SMT) and provides a compact footprint for space-constrained applications.

Applications:

The ATF1508AS-7QC100 is highly versatile and can be used in a variety of applications, including but not limited to automotive systems, telecommunications, data processing, industrial control, and consumer electronics. Its ability to be reprogrammed in the field allows for easy updates and adaptations to changing requirements, making it a valuable component in any design that requires a flexible and reliable logic solution.

With its combination of performance, flexibility, and power efficiency, the ATF1508AS-7QC100 from Microchip Technology is an excellent choice for designers looking to create sophisticated and adaptable digital logic systems.
