Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Embedded - MCU, DSP
Mfr Microchip Technology
Series AVR® ATmega
Package Box
Board Type Evaluation Platform
Type MCU 8-Bit
Core Processor AVR
Platform MEGA-1284P Xplained
Utilized IC / Part ATMEGA1284P
Mounting Type Fixed
Contents Board(s)
Base Product Number ATMEGA1284
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8471.50.0150
Other Names ATMEGA1284PXPLD
Standard Package 1
Win Source Part Number 1161692-ATMEGA1284P-XPLD
Ultra Librarian 3D Model Ultra Librarian ATMEGA1284P-XPLD CAD Model

Description

Microchip Technology ATMEGA1284P-XPLD Product Overview

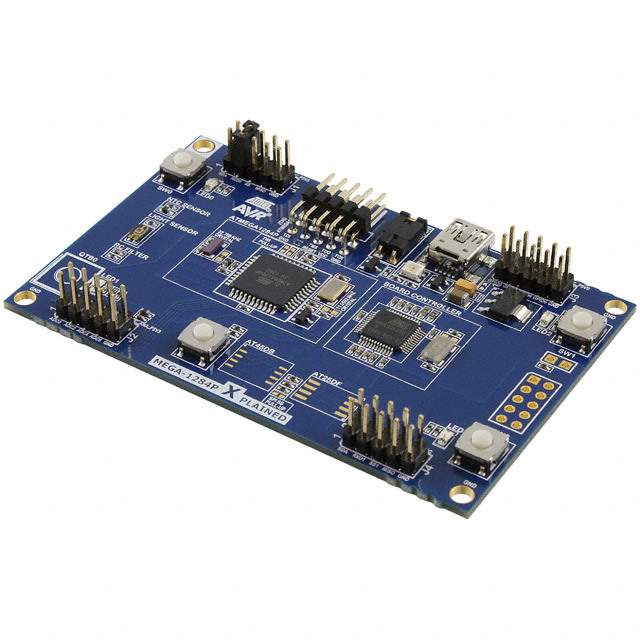

The ATMEGA1284P-XPLD from Microchip Technology is a feature-rich and versatile development tool designed to support the robust ATmega1284P microcontroller, which is well-suited for a wide range of applications requiring large memory and low power consumption. This development board is an excellent choice for hobbyists, educators, and professional engineers looking to prototype and test their designs based on the AVR® microcontroller family.

Key Features of ATMEGA1284P-XPLD:

  • High-Performance AVR Microcontroller: At the heart of the board is the ATmega1284P MCU, which boasts 128KB of in-system programmable flash, 16KB SRAM, 4KB EEPROM, and operates at up to 20MHz.
  • Extensive Connectivity: The board includes a variety of peripherals and interfaces, such as USART, SPI, and I2C, for easy integration with external devices and modules.
  • Onboard Programming and Debugging: Equipped with a PDI (Program and Debug Interface), the ATMEGA1284P-XPLD simplifies the development process by allowing in-circuit programming and real-time debugging without the need for additional hardware.
  • Flexible Power Options: The board can be powered through the USB connection or an external power supply, making it adaptable for both mobile and stationary applications.
  • Expansion Ready: Users can expand the board's capabilities with various add-on modules thanks to its expansion headers compatible with Arduino shields and other standard interfaces.
  • Comprehensive Software Support: The ATMEGA1284P-XPLD is supported by Microchip's robust software ecosystem, including the MPLAB® X Integrated Development Environment (IDE) and the Atmel Studio 7 IDE, as well as a wide range of code examples and libraries.

Whether you're building complex industrial control systems, custom IoT devices, or simply experimenting with the AVR architecture, the ATMEGA1284P-XPLD provides a solid foundation for your projects. Its combination of memory capacity, processing power, and flexible development options make it a valuable asset for any designer working with Microchip's AVR microcontrollers.

For additional resources, technical documentation, and support, users can access Microchip Technology's extensive online knowledge base, ensuring a smooth development experience from prototype to production.
