Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Series VIPER™
Package Box
Main Purpose AC/DC, Primary Side
Outputs and Type 1, Non-Isolated
Power - Output 6 W
Regulator Topology Flyback
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part VIPer16
Base Product Number STEVAL
Other Names 497-14481,-497-14481
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284169-STEVAL-ISA118V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA118V1 CAD Model

Description

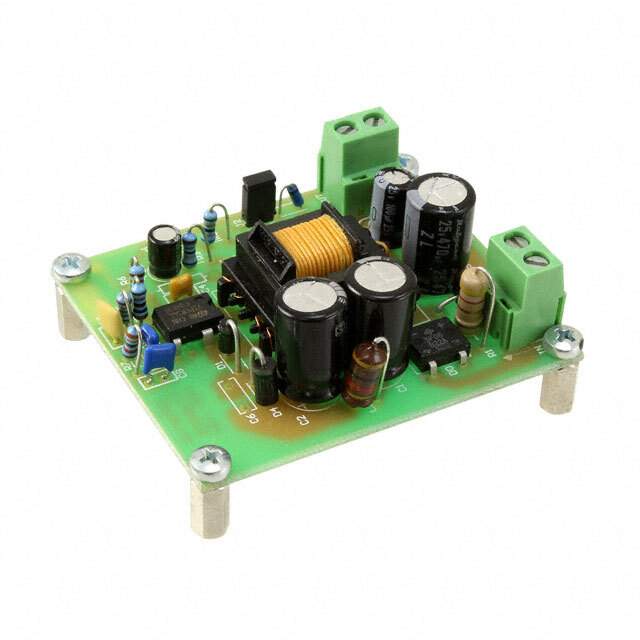

The STEVAL-ISA118V1 is a highly efficient evaluation board designed by STMicroelectronics, tailored for those seeking a robust solution for power management and conversion. This compact evaluation platform is built around STMicroelectronics' advanced power technology, offering an exemplary demonstration of a step-down switching power supply, also known as a buck converter.

The core of the STEVAL-ISA118V1 is the L7987, a high-performance 61 V, 3 A step-down switching regulator with a wide input voltage range. This allows the board to handle a variety of input sources, making it highly versatile for different power supply scenarios. The L7987 is optimized for efficiency, ensuring minimal power loss during operation and making the board an excellent choice for energy-sensitive applications.

The evaluation board is engineered to cater to a broad range of power supply requirements, with an adjustable output voltage that can be set from 0.8 V to VIN - Vdrop, depending on the needs of the application. This flexibility is a significant advantage for designers who require a customizable voltage output for their specific circuitry.

The STEVAL-ISA118V1 boasts an impressive array of features, including overcurrent protection, thermal protection, and soft-start capability. These features ensure the safety and longevity of both the board and the connected components. The evaluation board also includes an enable pin that allows the user to control the turn-on and turn-off of the output voltage as needed, providing additional power management options.

This evaluation board is an excellent tool for testing and prototyping, offering a practical and straightforward way to explore the capabilities of the L7987 regulator. Whether for industrial, consumer, or automotive applications, the STEVAL-ISA118V1 provides a reliable and efficient solution for power supply design challenges.

Overall, the STEVAL-ISA118V1 is a testament to STMicroelectronics' commitment to providing innovative and high-quality power management solutions. It is an indispensable tool for engineers and designers looking to create efficient and reliable power supply systems.
