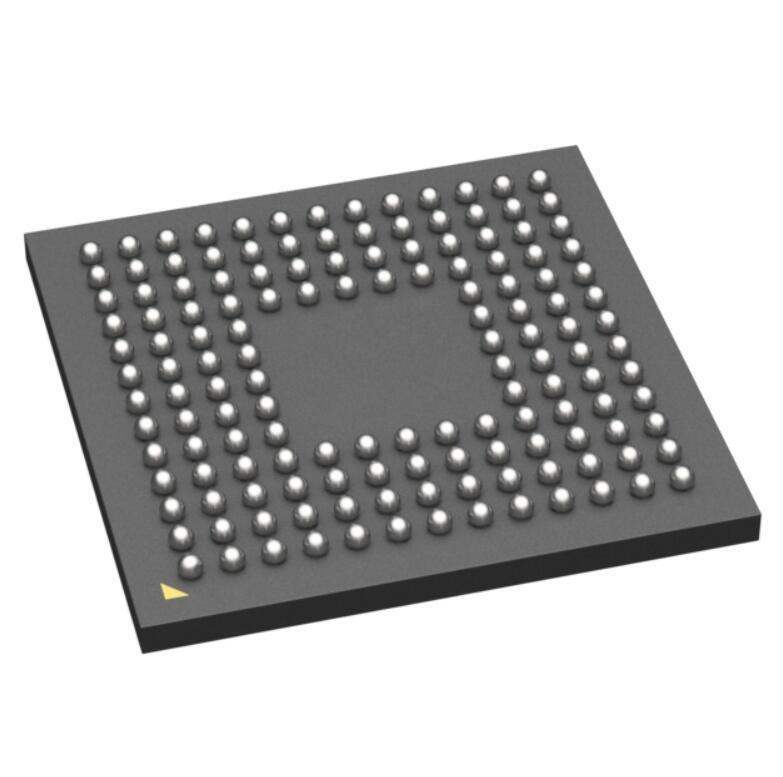

Microchip Technology ATSAME70Q20A-CFNT

The ATSAME70Q20A-CFNT is a high-performance microcontroller designed by Microchip Technology, which is part of the SAM E70 series. This powerful MCU is based on the ARM Cortex-M7 processor, delivering exceptional computational performance and energy efficiency, making it an ideal choice for industrial, automotive, and consumer applications that require significant processing capabilities.

With a maximum operating frequency of up to 300 MHz, the ATSAME70Q20A-CFNT boasts a high-performance architecture that includes a single-precision floating-point unit (FPU), enhancing the execution of control algorithms and complex mathematical computations. The device comes with a substantial 1MB of dual-bank Flash memory and 384KB of SRAM, allowing for robust and flexible software development.

Connectivity is a strong suit for this microcontroller. It features a variety of communication interfaces, including:

• High-speed USB Host and Device with on-chip PHY
• Dual CAN-FD for robust communication in automotive and industrial networks
• High-speed MultiMedia Card Interface (MMC/SD/SDIO) for data storage
• Two I2S interfaces for audio applications
• Three USARTs, two UARTs, and three SPI interfaces for serial communication
• Two I2C interfaces for peripheral connectivity
• Two Ethernet MACs with IEEE 1588 support for networking applications

For real-time control applications, the ATSAME70Q20A-CFNT provides a comprehensive set of peripherals. It includes a PWM (Pulse Width Modulation) controller, a 12-bit ADC with up to 24 channels, and a 12-bit DAC, ensuring precise control and data acquisition capabilities. The device also features a temperature sensor, a real-time clock, and support for both parallel and serial capture modes.

Security is also a focus for the ATSAME70Q20A-CFNT. It incorporates hardware-based security features, such as the Secure Hash Algorithm (SHA) and Advanced Encryption Standard (AES) accelerators, a True Random Number Generator (TRNG), and a unique ID for each chip, which can be used for secure device authentication.

Designed with robustness in mind, the ATSAME70Q20A-CFNT operates within the -40°C to +105°C temperature range, ensuring reliability across diverse environments. The chip comes in a LQFP144 package, providing ample I/O ports for interfacing with other components in a system.

Overall, the ATSAME70Q20A-CFNT is a versatile and powerful microcontroller that is well-suited for demanding applications that require high-speed processing, advanced connectivity, and secure operations.
