The DSC1103CE1-156.2500T is a high-performance, low-jitter MEMS oscillator designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This precision oscillator is part of Microchip's DSC1103 series, which is known for its stability, reliability, and energy efficiency, making it an excellent choice for a wide range of applications.

Key Features

• Frequency: The DSC1103CE1-156.2500T offers a fixed output frequency of 156.2500 MHz, which is ideal for high-speed digital systems that require precise timing solutions.

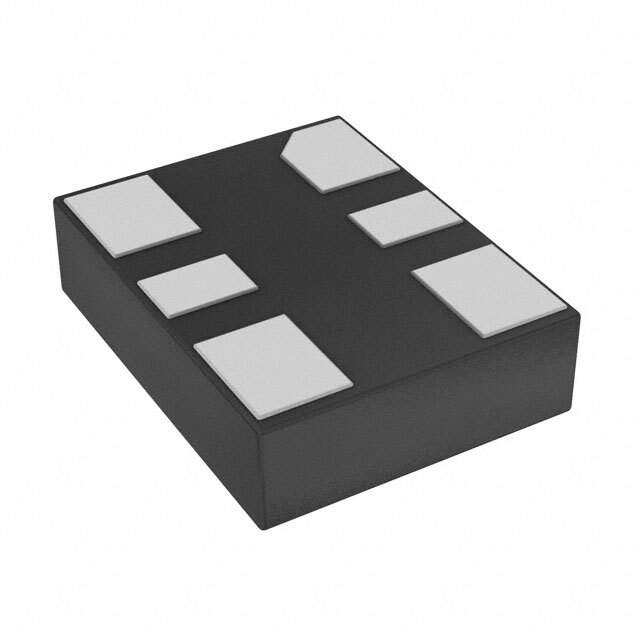

• Package: Housed in a compact 6-pin ceramic package, this device measures just 3.2 x 2.5 mm (L x W), allowing for easy integration into space-constrained designs without sacrificing performance.
• Supply Voltage: It operates at a supply voltage of 2.25V to 3.6V, which provides flexibility in different system power schemes and helps in maintaining low power consumption.
• Stability: The oscillator maintains excellent frequency stability over a wide temperature range, ensuring consistent performance under varying environmental conditions.
• Low Jitter: With its low phase jitter, the DSC1103CE1-156.2500T is particularly suitable for applications that demand high data rates and bandwidth, such as networking, telecommunications, and high-performance computing.
• Output Type: This model provides a differential LVPECL output, which is commonly used in high-speed digital circuits for its fast switching characteristics and noise immunity.

Applications

The versatility of the DSC1103CE1-156.2500T makes it an ideal choice for various applications, including but not limited to:

• High-speed data communication equipment
• Networking hardware such as routers and switches
• Storage area networks (SAN)
• Server and workstation clock generation
• Test and measurement systems

Quality and Reliability

Microchip Technology is committed to providing products that meet the highest standards of quality and reliability. The DSC1103CE1-156.2500T is no exception, as it undergoes rigorous testing and quality control measures to ensure it meets the stringent requirements of the industry sectors it serves.
