Microchip Technology's DSC1104BI5-100.0000T Precision Oscillator

The DSC1104BI5-100.0000T is a high-performance, low-jitter oscillator from Microchip Technology, designed to deliver exceptional frequency stability and accuracy for a wide range of applications. This precision oscillator is a part of Microchip's extensive portfolio of timing solutions, catering to the demands of complex electronic systems.

Key Features

• Frequency: The DSC1104BI5-100.0000T offers a fixed output frequency of 100.0000 MHz, providing a stable timing source for your critical applications.
• Supply Voltage: Operating from a 1.8V supply voltage, this device is optimized for low-power operation, making it suitable for battery-powered and energy-sensitive designs.
• Stability: It boasts excellent frequency stability, ensuring reliable performance over a range of environmental conditions including temperature, voltage, and aging variations.

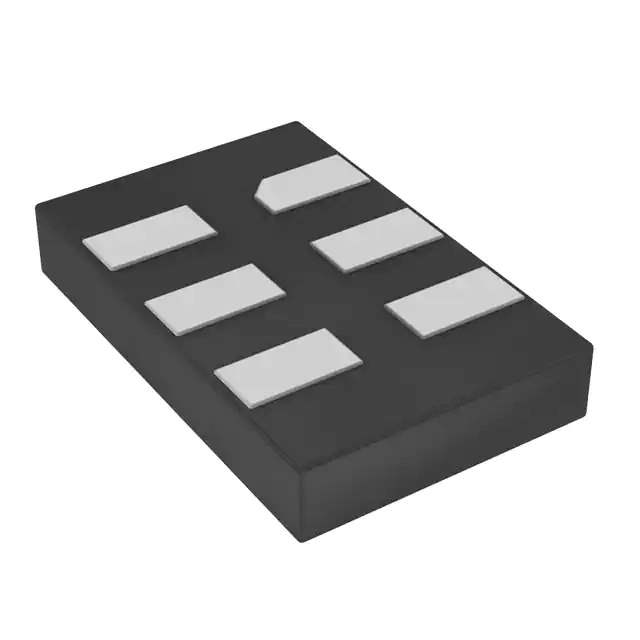

• Form Factor: The device comes in a compact, industry-standard 6-pin ceramic package, measuring just 3.2 x 2.5 mm (L x W), which allows for easy integration into space-constrained applications.
• Temperature Range: With an operational temperature range of -40°C to +85°C, the DSC1104BI5-100.0000T is well-suited for industrial and commercial environments where temperature extremes may be encountered.
• Low Jitter: The oscillator is designed to minimize phase jitter, making it ideal for high-speed digital signal processing, telecommunications, and networking equipment where signal integrity is paramount.
• Output Type: It provides a CMOS/LVCMOS compatible output, ensuring compatibility with a wide variety of digital ICs and microcontrollers.

Applications

The DSC1104BI5-100.0000T is versatile and can be used in a multitude of applications, including but not limited to:

• High-speed data communications
• Wireless infrastructure
• Networking equipment such as routers and switches
• Storage systems
• Industrial control systems
• Test and measurement equipment

With its precise timing and low jitter characteristics, the DSC1104BI5-100.0000T from Microchip Technology is an optimal choice for designers looking to enhance the performance and reliability of their electronic systems.
