Microchip Technology's DSC6023HI2A-00A4T MEMS Oscillator

The DSC6023HI2A-00A4T is a cutting-edge MEMS (Micro-Electro-Mechanical Systems) oscillator designed and manufactured by Microchip Technology. This compact and high-performance device is an ideal solution for modern electronic applications requiring a stable and reliable clock source.

With a nominal frequency of 4.000 MHz, the DSC6023HI2A-00A4T provides precise timing for a variety of applications, including but not limited to industrial automation, consumer electronics, IoT devices, and portable medical equipment. The oscillator's MEMS technology offers superior stability and reliability compared to traditional crystal oscillators, making it a wise choice for critical applications where precision is paramount.

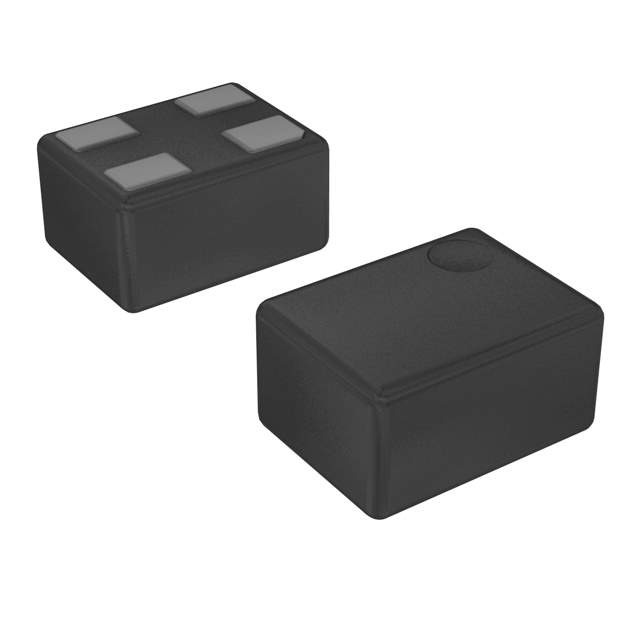

This MEMS oscillator is housed in a compact 2.5mm x 2.0mm package, allowing for easy integration into space-constrained designs. Its small form factor is particularly beneficial for portable and wearable devices where space is at a premium. Additionally, the DSC6023HI2A-00A4T is characterized by its low power consumption, which helps to extend battery life in mobile applications.

The device operates over an industrial temperature range from -40°C to +85°C, ensuring consistent performance even in harsh environmental conditions. This temperature resilience makes it suitable for outdoor and automotive applications that must withstand extreme temperatures.

Key features of the DSC6023HI2A-00A4T include:

• Nominal Frequency: 4.000 MHz
• Supply Voltage: 1.71V to 3.63V
• Frequency Stability: ±25 ppm
• Output Type: CMOS
• Operating Temperature Range: -40°C to +85°C
• Package / Case: 4-SMD, No Lead

Microchip Technology's commitment to quality ensures that the DSC6023HI2A-00A4T oscillator is a reliable component for any design. Its robust performance, coupled with low power consumption and small size, make it an excellent choice for designers looking to optimize their systems for both performance and efficiency.
