Microchip Technology's DSPIC33EV32GM102-E/MM Product Overview

The DSPIC33EV32GM102-E/MM is a high-performance, 16-bit Digital Signal Controller (DSC) from Microchip Technology, designed to deliver the efficiency of a microcontroller with the digital signal processing capabilities of a DSP in a small, versatile package. This particular model is part of the dsPIC33E series, which is known for its rich set of features and is particularly well-suited for applications that require complex algorithms and control systems, such as automotive applications, motor control, power supplies, and embedded audio applications.

Key Features

• Core: The device operates at a maximum frequency of 70 MHz, with a 140 MIPS (Million Instructions Per Second) performance, ensuring swift and efficient processing for time-sensitive tasks.
• Program Memory: It comes equipped with 32 KB of flash memory, providing ample space for application code and data storage.
• RAM: With 4 KB of RAM, this controller can handle complex algorithms and buffer substantial amounts of data during operation.
• I/O Pins: The DSC offers 21 re-mappable input/output pins, allowing for flexible connectivity and peripheral assignment according to the specific needs of the application.
• Advanced Peripherals: It includes advanced control peripherals such as PWMs, input capture, output compare, and QEI (Quadrature Encoder Interface), making it ideal for precision control applications.
• Analog Features: The device integrates a 10-bit A/D converter, with up to 13 channels, enabling the interfacing with analog sensors and the conversion of analog signals to digital data for processing.
• Communication Interfaces: It supports multiple communication protocols, including UART, SPI, and I2C, for easy integration into a wide range of systems.
• Operating Voltage: The DSPIC33EV32GM102-E/MM operates over a broad voltage range of 3.0V to 3.6V, accommodating various power supply designs.
• Temperature Range: It is designed to operate within the industrial temperature range of -40°C to +125°C, ensuring reliability and performance under extreme conditions.

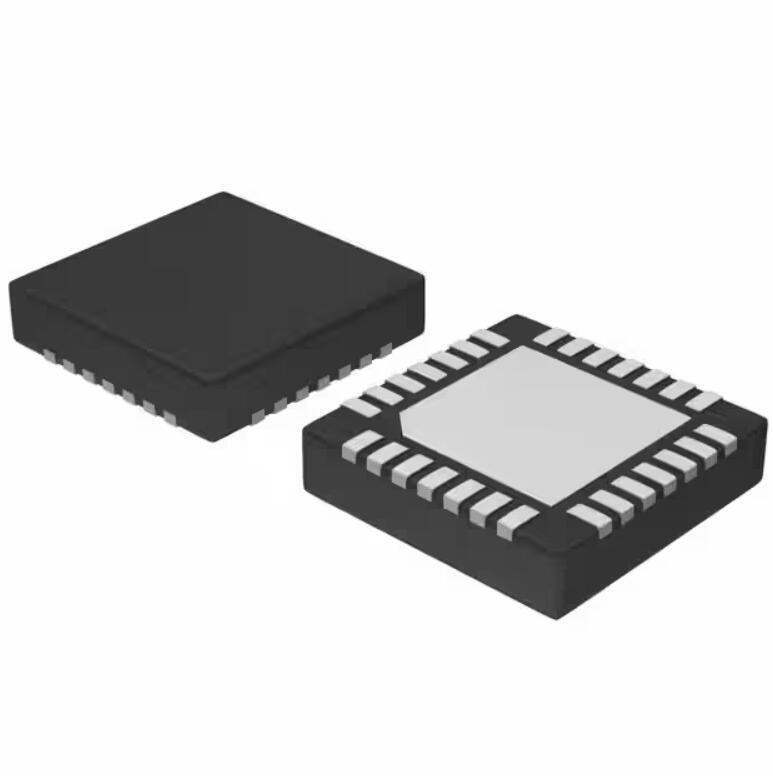

• Packaging: The component is available in a 28-pin QFN package, providing a compact footprint for space-constrained applications.

Applications

The DSPIC33EV32GM102-E/MM is a versatile component that can be used in a wide range of applications. Its robust processing capabilities and rich set of peripherals make it an excellent choice for automotive applications, including sensor interfacing and actuator control. It is also ideal for motor control systems, such as those found in drones, robotics, and industrial automation. Additionally, its capabilities extend to power management systems, including DC-DC converters, inverters, and LED lighting systems, as well as embedded audio processing for consumer electronics.
