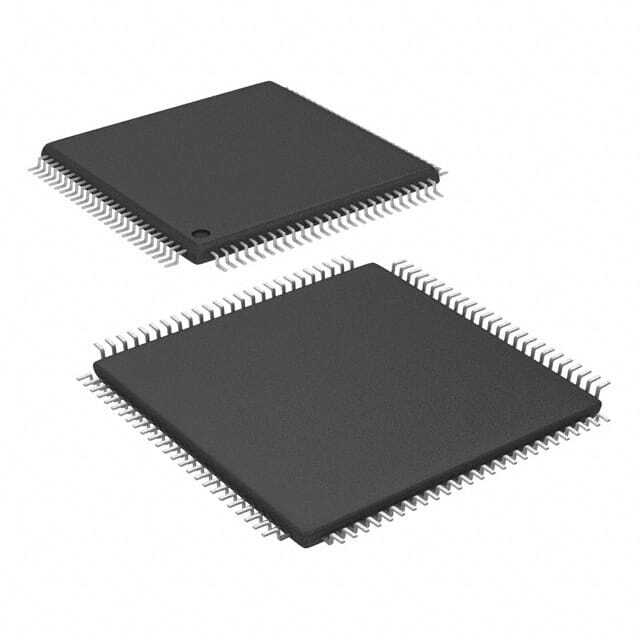

Product Overview: DSPIC33FJ256MC710T-I/PF

The DSPIC33FJ256MC710T-I/PF is a high-performance, 16-bit Digital Signal Controller (DSC) from Microchip Technology, designed to deliver the efficiency of a microcontroller with the computational power of a digital signal processor. This integrated circuit is part of Microchip's dsPIC33FJ series and is ideal for applications that require advanced algorithms and processing-intensive tasks.

Key Features

• Core: The device features a 40 MIPS (million instructions per second) dsPIC core with an enhanced instruction set, including a wide range of digital signal processing capabilities. This allows for fast and efficient processing of complex algorithms used in audio processing, motor control, and other embedded control applications.
• Memory: It comes with 256 KB of flash memory and 30 KB of RAM, providing ample space for code storage and data manipulation within a single chip.
• I/O Ports: This DSC offers a rich set of peripherals, including UART, SPI, and I2C serial interfaces for communication, as well as a flexible and configurable set of input/output ports.
• Timers and PWM: Multiple 16-bit and 32-bit timers, along with advanced PWM (Pulse Width Modulation) capabilities, make it suitable for precise timing and control applications such as motor control and power conversion.
• Analog Features: The DSPIC33FJ256MC710T-I/PF is equipped with a 12-bit ADC (Analog-to-Digital Converter) with up to 16 analog inputs, and it also supports Charge Time Measurement Unit (CTMU) for touch sensing or precise time measurement.
• Robust Design: With an extended operating temperature range, the device is built to operate reliably in harsh environments, making it a good fit for industrial and automotive applications.

Applications

This DSC is suitable for a wide array of applications that require high-speed digital signal processing combined with the ease of use of a microcontroller. It is particularly well-suited for:

• Advanced Motor Control
• Power Supply and Power Management Systems
• Audio and Speech Processing
• Industrial Automation and Process Control
• Automotive and Transportation Systems
• Instrumentation and Measurement Devices

The DSPIC33FJ256MC710T-I/PF from Microchip Technology is a versatile and powerful solution for developers looking to integrate advanced control and signal processing features into their designs with a single, integrated device.
