Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 29 Weeks

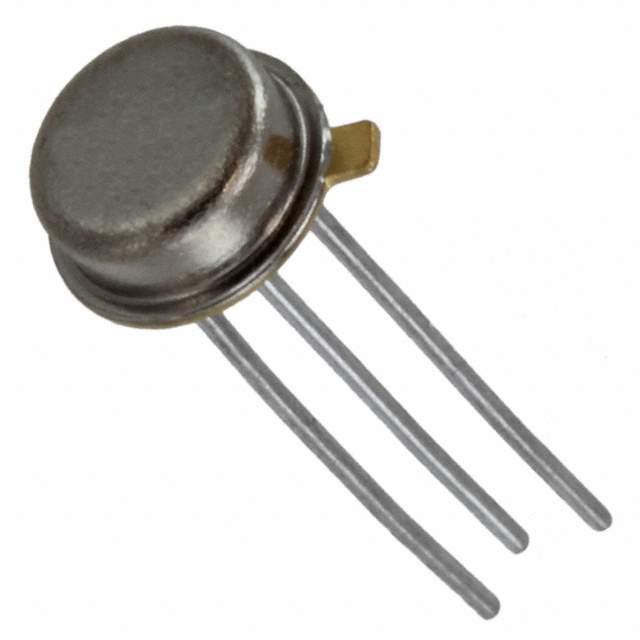

Features Bipolar (BJT) Transistor PNP 60 V 30 mA - 400 mW Through Hole TO-46-3
Manufacturer Microchip Technology
Series Military, MIL-PRF-19500/354
Package Bulk
Operating Temperature Range -65°C ~ 200°C (TJ)
Mounting Through Hole
Package TO-206AB, TO-46-3 Metal Can
Case / Package TO-46-3
Family Name 2N2605
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Other Part Number 1086-2331, 1086-2331-MIL
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922283-JAN2N2605
Ultra Librarian 3D Model Ultra Librarian JAN2N2605 CAD Model

Description

The JAN2N2605 is a high-reliability, NPN bipolar junction transistor (BJT) developed by Microchip Technology, renowned for its precision-engineered semiconductor products. This transistor is specifically designed to meet the stringent requirements of aerospace and military applications, offering exceptional performance even under the most demanding conditions.

Key Features

  • Versatility: The JAN2N2605 is capable of operating in a wide range of circuits, making it suitable for a variety of electronic applications, including switching and amplification.
  • High Reliability: As a JAN-level product, this transistor is manufactured and tested to meet the rigorous standards of the Joint Army/Navy (JAN) specification, ensuring reliability and performance in critical missions.
  • Robust Performance: With its ability to handle high power and withstand extreme temperatures, the JAN2N2605 is designed for durability and stable operation over its lifespan.
  • Quality Assurance: Microchip Technology's commitment to quality means each transistor is subject to stringent testing and quality control measures, ensuring that each device performs to its specifications.

Applications

The JAN2N2605 is ideal for use in a variety of high-reliability applications, including:

  • Defense and Aerospace Systems
  • Communication Equipment
  • Satellite and Spacecraft Electronics
  • Power Regulation Modules
  • High-Performance Computing

Technical Specifications

  • Transistor Polarity: NPN
  • Collector-Emitter Voltage VCEO Max: 80 V
  • Collector-Base Voltage VCBO: 140 V
  • Emitter-Base Voltage VEBO: 7 V
  • Collector Current - Continuous IC: 1 A
  • Power Dissipation: 5 W

With the JAN2N2605, Microchip Technology provides a robust and reliable transistor solution for critical applications where failure is not an option. Its adherence to military standards guarantees that it will perform to the highest expectations, ensuring system integrity and operational readiness.
