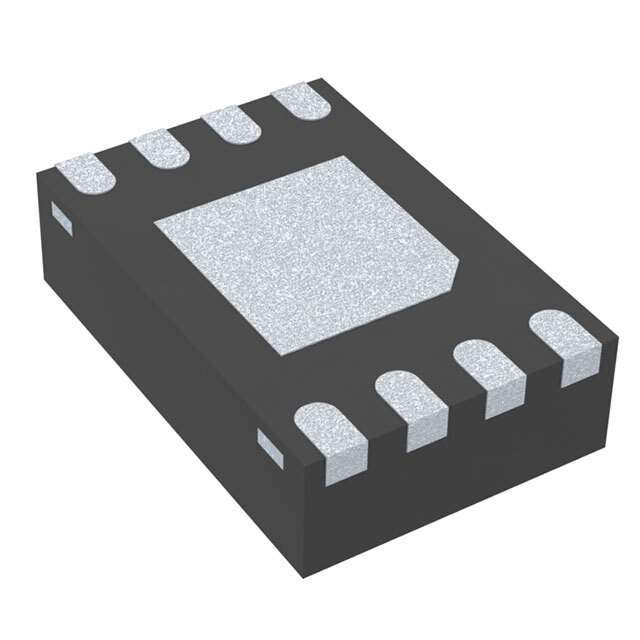

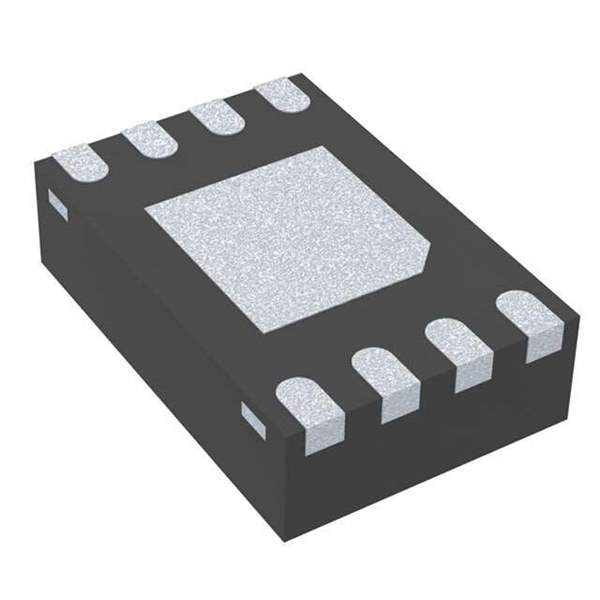

Microchip Technology's MCP1703T-1202E/MC Low-Dropout Voltage Regulator

The MCP1703T-1202E/MC is a high-performance, low-dropout (LDO) voltage regulator from Microchip Technology, designed to deliver a fixed output voltage of 1.2V with an input voltage range of up to 16V. This component is ideal for battery-powered devices, microcontroller power supplies, and other applications where voltage regulation with low power consumption is essential.

With an output current capability of up to 250 mA, this LDO regulator maintains a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage. It features a typical quiescent current of just 2 µA, making it an excellent choice for portable and battery-operated equipment where extending battery life is crucial.

The MCP1703T-1202E/MC comes in a compact SOT-223 package, which is suitable for space-constrained applications. Its thermal overload protection and short-circuit current limiting provide reliable operation and protection for both the regulator and the downstream components. Additionally, the device has a low output voltage temperature coefficient, ensuring stable operation over a wide temperature range.

Key features of the MCP1703T-1202E/MC include:

• Fixed output voltage: 1.2V
• Maximum input voltage: 16V
• Output current: up to 250 mA
• Low dropout voltage
• Low quiescent current: 2 µA (typical)
• Stable with 1.0 µF to 22 µF output capacitor
• Short-circuit current limiting and thermal protection
• High-accuracy output voltage

Whether you're designing power supplies for microcontrollers, analog devices, or general-purpose fixed-rail applications, the MCP1703T-1202E/MC from Microchip Technology offers a reliable and energy-efficient solution. Its combination of low quiescent current, high output accuracy, and robust protection features make it a versatile choice for engineers and designers looking to optimize their power management systems.

For detailed specifications, application circuits, and additional information, refer to the official datasheet and design guides provided by Microchip Technology.
