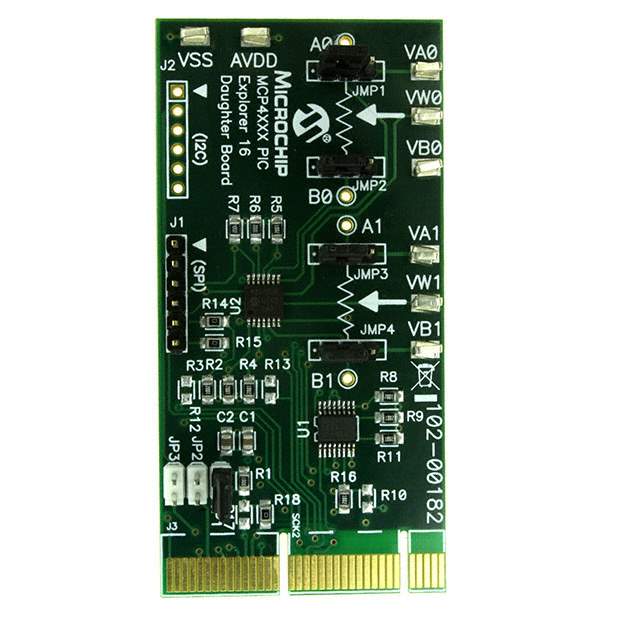

Microchip Technology's MCP42XXDM-PTPLS Digital Potentiometer Evaluation Board

The MCP42XXDM-PTPLS is a comprehensive evaluation board designed by Microchip Technology to facilitate the testing and experimentation of the MCP42XX family of dual digital potentiometers. This development tool is pivotal for designers and engineers who aim to integrate digital potentiometers into their applications, providing a user-friendly platform for thorough evaluation.

At the heart of the MCP42XXDM-PTPLS are the MCP42010, MCP42050, and MCP42100 digital potentiometers, which feature two independently controlled 256-position potentiometers in a single package. These devices offer a convenient digital interface to control resistance settings, making them ideal for adjusting and calibrating system parameters electronically, without the need for manual potentiometer adjustments.

The evaluation board is equipped with a variety of features that showcase the capabilities of the MCP42XX series. It includes a Plug-in Terminal Board (PTB) that allows users to quickly connect to their own system using screw terminals. This flexibility ensures that the board can be easily integrated into a wide range of applications, from industrial control systems to consumer electronics.

The MCP42XXDM-PTPLS also supports the PICkit™ Serial Analyzer, which is used to communicate with the digital potentiometers via an SPI interface. This interface facilitates the programming of resistance values and the monitoring of wiper settings, providing a transparent method for users to interact with the digital potentiometers in real-time.

To enhance the user experience, Microchip Technology provides comprehensive documentation and software support for the MCP42XXDM-PTPLS. This includes detailed datasheets, application notes, and user guides that help users to quickly get up to speed with the capabilities and usage of the evaluation board. Additionally, example code and software tools are available to aid in the development of custom applications and to streamline the integration process.

With its robust design, versatile connection options, and extensive support materials, the MCP42XXDM-PTPLS evaluation board is an invaluable tool for anyone looking to leverage the power and convenience of digital potentiometers in their next project.
