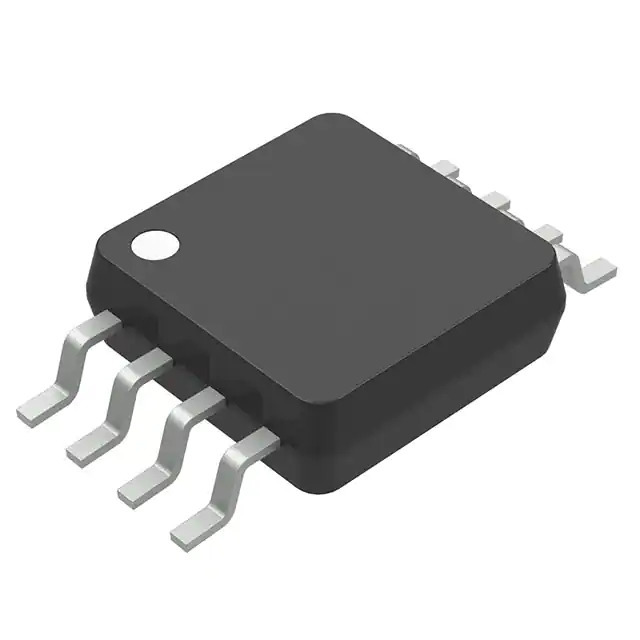

The MCP4542-103E/MS is a high-performance digital potentiometer designed by Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. This particular device is part of the MCP4541 series, which is known for its precision and reliability in various digital rheostat applications. The MCP4542-103E/MS comes in a compact MSOP (Micro Small Outline Package) that is suitable for space-constrained applications.

Key Features

• Resistance Value: The device offers a 10kΩ (10,000 ohms) resistance value, providing a wide range of adjustability for various circuit designs.
• Resolution: With 7-bits (128 wiper steps), this digital potentiometer allows for fine-tuning of resistance settings, making it highly precise for calibration and control applications.
• Interface: The MCP4542-103E/MS incorporates a user-friendly I2C interface, which makes it easy to communicate with most microcontrollers and digital systems.
• Non-Volatile Memory: It features non-volatile memory (EEPROM) to store the wiper position, ensuring the last setting is retained even after the power is cycled.
• Dual Potentiometer: This device has dual potentiometer channels, which allows for the control of two separate signal paths or the adjustment of two variables simultaneously.
• Operating Voltage: The operating voltage range is from 2.7V to 5.5V, accommodating a variety of logic levels and making it versatile for different electronic environments.
• Temperature Range: With an operational temperature range of -40°C to +125°C, the MCP4542-103E/MS is robust enough to handle extreme conditions, ensuring reliability across various applications.

Applications

The MCP4542-103E/MS is ideal for a range of applications, including but not limited to, adjustable power supplies, LCD screen calibration, audio control, industrial automation, and automotive systems. Its precision and digital interface make it an excellent choice for advanced control systems where electronic adjustments are required.

In summary, the MCP4542-103E/MS from Microchip Technology is a versatile and reliable digital potentiometer that offers precise control over resistance settings in a wide array of electronic applications.
