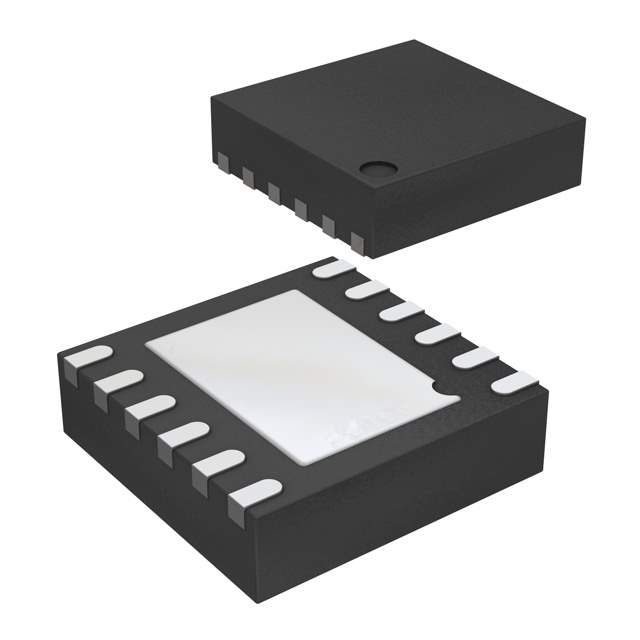

MIC2198BML Step-Down High-Frequency PWM Controller

The MIC2198BML from Microchip Technology is a robust, high-efficiency, step-down PWM controller designed for a wide range of applications, including telecommunications, consumer electronics, and industrial systems. This controller operates at a high switching frequency, which allows for the use of small inductors and capacitors, resulting in a compact power supply design with minimized ripple and noise.

Key Features and Benefits:

• High Efficiency: The MIC2198BML offers high efficiency, which is critical for reducing heat generation and improving system reliability in power-sensitive applications.
• Adjustable Switching Frequency: With an adjustable switching frequency up to 400kHz, designers can optimize the balance between efficiency and component size.
• Wide Input Voltage Range: The device supports a wide input voltage range, accommodating various power sources and enabling its use in multiple applications.
• Integrated MOSFET Drivers: The controller includes integrated MOSFET drivers, simplifying the design and reducing external component count.
• Current-Mode Control: Current-mode control provides fast transient response and simplifies loop compensation.
• Thermal Shutdown: The built-in thermal shutdown feature ensures the controller operates within safe temperature limits, protecting the system from overheating.
• Under-Voltage Lockout (UVLO): The UVLO function ensures the controller operates only when the input voltage is within a safe range.
• Soft-Start Function: The soft-start function minimizes inrush current during startup, which is beneficial for system longevity and stability.

Applications:

The MIC2198BML is suitable for a variety of applications, including:

• Point of Load (POL) power supplies
• DC/DC converters for distributed power systems
• Telecommunications equipment
• Networking hardware such as switches and routers
• Industrial and medical equipment

With its combination of features, the MIC2198BML provides designers with a versatile and reliable solution for advanced power management challenges. Its performance and integration capabilities make it an ideal choice for systems requiring efficient power conversion and tight regulation.
