Microchip Technology's MIC28511-1YFL-T5 Switching Regulator

The MIC28511-1YFL-T5 from Microchip Technology is a high-efficiency, synchronous step-down switching regulator designed for a wide range of applications. This regulator is capable of delivering up to 4A of continuous output current and operates over an input voltage range of 4.6V to 75V, which makes it suitable for use in industrial, automotive, and telecommunications power systems.

The device integrates both high-side and low-side internal N-channel MOSFETs, providing a compact solution with minimal external components. Moreover, the MIC28511-1YFL-T5 features a fixed switching frequency of 500kHz that helps to optimize efficiency while reducing the size of external components.

With its HyperLight Load® mode, the MIC28511-1YFL-T5 achieves high efficiency at light loads, which is essential for applications that have standby power requirements. This mode allows the regulator to operate with reduced switching losses when the load is light, thereby improving overall system efficiency.

The MIC28511-1YFL-T5 also offers a range of protective features to ensure the safety and reliability of the end application. These features include under-voltage lockout, thermal shutdown, and over-current protection. Additionally, the device has an adjustable output voltage, which allows for precise regulation tailored to the needs of the specific application.

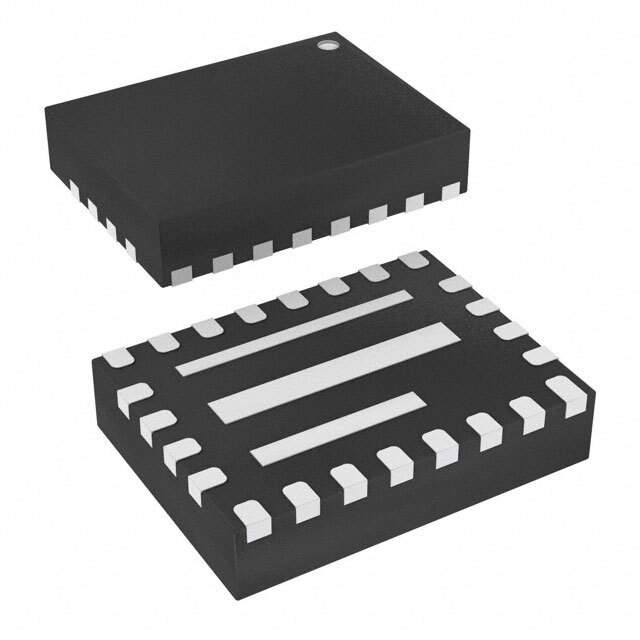

For ease of use, the regulator comes in a 28-lead 5x5mm QFN package, which is both space-efficient and suitable for automated assembly processes. Its lead (Pb)-free finish and RoHS compliance make it an environmentally friendly choice, adhering to current regulations on hazardous substances in electronic equipment.

In summary, the MIC28511-1YFL-T5 from Microchip Technology is a versatile and robust switching regulator that offers high efficiency, a wide input voltage range, and essential protection features. Its compact design and ease of integration make it an excellent choice for designers looking to optimize power management in their next project.
