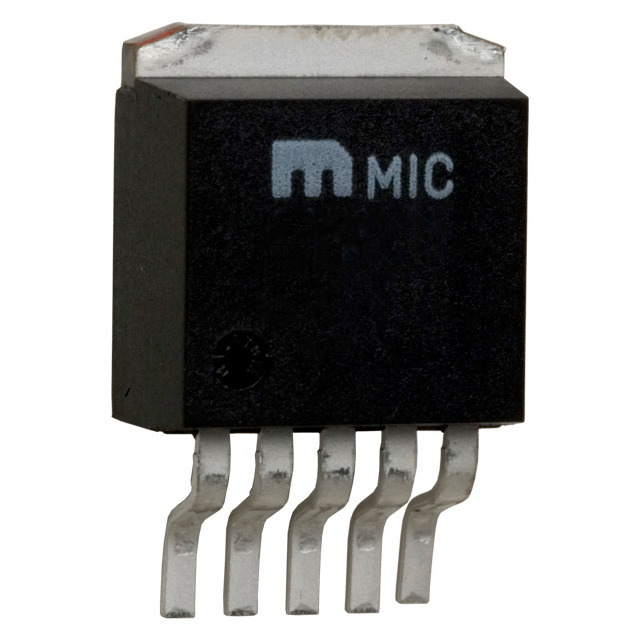

MIC29201-4.8BU

Part No MIC29201-4.8BU
Manufacturer Microchip Technology
Catalog PMIC - Voltage Regulators - Linear
Description 400mA Low-Dropout Voltage Regulator | IC REG LIN 4.85V 400MA TO263-5
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube
Status Obsolete
Output Type Fixed
Voltage - Input (Maximum) 26V
Min/Fixed Output Voltage 4.85V
Maximum Dropout Voltage 0.75V at 400mA
Output Current 400mA
Current - Quiescent (Iq) 300μA
Maximum Supply Current 12mA
Control Features Enable
Protection Features Load Dump, Over Current, Reverse Polarity
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Supplier Device Package TO-263-5
Family Part Number MIC29201-4.8
Manufacturer Pack Quantity 50
MSL Level 3 (168 Hours)
Win Source Part Number 1222391-MIC29201-4.8BU
Manufacturer Homepage www.micrel.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MIC29201-4.8BU CAD Model

Description

The MIC29201-4.8BU is a high-current, low-dropout voltage regulator designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This regulator is capable of delivering up to 400mA of output current while maintaining a low dropout voltage, making it an ideal choice for applications requiring efficient power management.

Key Features

  • Output Voltage: Fixed at 4.8 volts, providing a stable supply for consistent performance.
  • High Output Current: Capable of delivering up to 400mA, suitable for powering a wide range of devices.
  • Low Dropout Voltage: Ensures minimal voltage drop between the input and output, enhancing efficiency even at lower input voltages.
  • Thermal Overload Protection: Built-in safety feature that prevents damage from overheating by shutting down the regulator if the internal temperature exceeds safe limits.
  • Short Circuit Protection: Offers additional security by protecting the device against potential damage from output short circuits.
  • Wide Operating Temperature Range: Designed to function reliably in a broad range of temperatures, making it suitable for various environmental conditions.

Applications

The MIC29201-4.8BU is versatile and can be used in numerous applications, including:

  • High-end consumer electronics
  • Telecommunications equipment
  • Portable battery-powered devices
  • Computer peripherals
  • Industrial and automotive systems

Quality and Reliability

Microchip Technology is known for its commitment to quality, and the MIC29201-4.8BU is no exception. It is built to meet high standards, ensuring reliable performance and a long operational lifespan. Engineers and designers can integrate this regulator into their systems with confidence, knowing it will provide a stable power source for their critical applications.

For detailed specifications, application notes, and additional resources, customers are encouraged to visit Microchip Technology's official website or contact their support team for more information.
