Product Overview: MIC5209-3.3YS-TR by Microchip Technology

The MIC5209-3.3YS-TR is a high-performance, fixed-output voltage regulator from Microchip Technology, designed to provide a steady 3.3V output from a wider input voltage range. This low-dropout (LDO) linear voltage regulator is an excellent choice for applications that require a stable and reliable power supply, with the added benefit of a low voltage drop across the device.

Key Features

• Output Voltage: Fixed at 3.3V, it provides a precise voltage for sensitive electronics.
• High Output Current: Capable of delivering up to 500mA, making it suitable for a variety of medium-power applications.
• Low Dropout: With a low dropout voltage, it operates efficiently, close to the input voltage level.
• Thermal Overload Protection: Ensures the device operates within safe temperature ranges, enhancing reliability.
• Short Circuit Protection: Offers protection against short-circuit conditions, preventing damage to the regulator and the connected load.
• Stable with Ceramic Capacitors: Can be used with low-cost, readily available ceramic capacitors, reducing overall design cost.

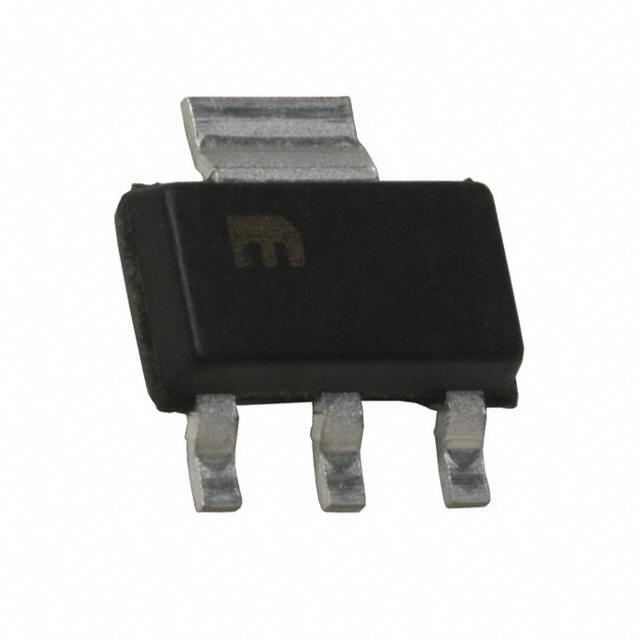

• Surface-Mount Package: The SOT-223 package allows for efficient use of PCB space and is suitable for automated assembly processes.

Applications

The MIC5209-3.3YS-TR is versatile and can be used in a variety of applications, including but not limited to:

• Battery-powered devices
• Portable electronics
• Microcontroller power supplies
• Peripheral power supplies
• Reference voltage sources

Quality and Reliability

Microchip Technology is known for its commitment to quality, and the MIC5209-3.3YS-TR is no exception. It is designed to meet the stringent requirements of industrial and commercial applications, ensuring long-term reliability and performance. Additionally, the part is available in tape and reel packaging (denoted by the 'TR' suffix), making it ideal for high-volume production environments.
