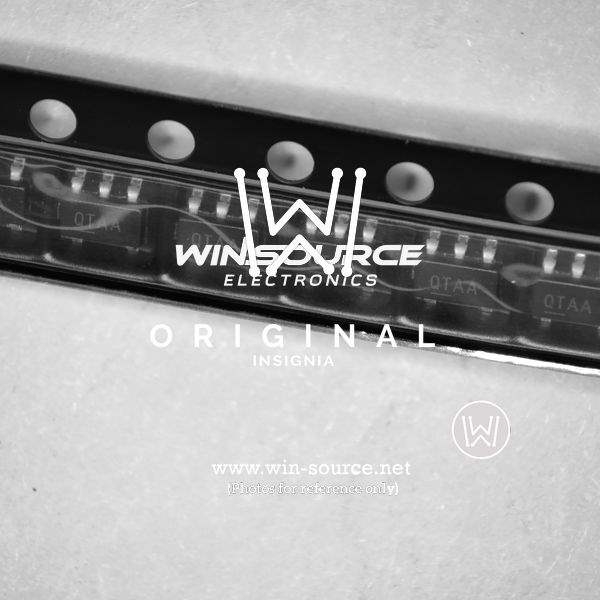

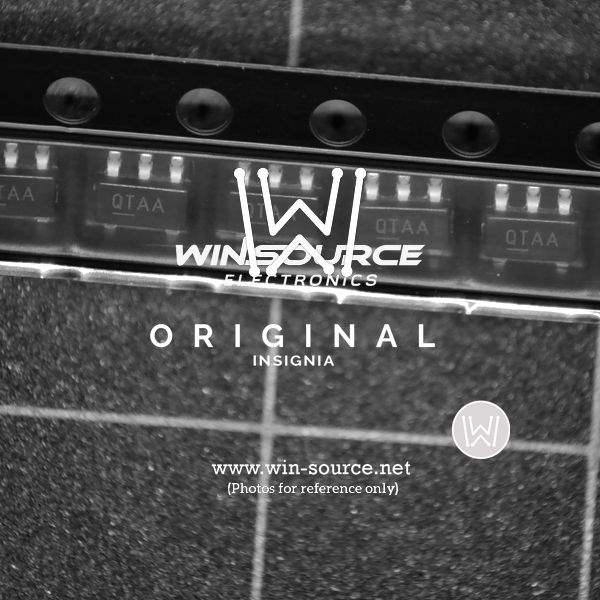

Microchip Technology MIC5225YM5-TR LDO Voltage Regulator

The MIC5225YM5-TR from Microchip Technology is a highly reliable low-dropout (LDO) voltage regulator, designed to provide a stable power supply with a low voltage drop. This regulator is particularly suitable for battery-powered devices, portable electronics, and other applications where power efficiency is crucial. Its small size and high accuracy make it an excellent choice for space-constrained designs.

Key Features:

• Output Voltage: The MIC5225YM5-TR offers a fixed output voltage of 5V, which is ideal for powering standard digital ICs and microcontrollers.
• High Accuracy: This LDO regulator provides a high output voltage accuracy, ensuring stable performance for sensitive electronic components.
• Low Dropout Voltage: With a low dropout voltage, the MIC5225YM5-TR maintains regulation even when the supply voltage is very close to the output voltage, enhancing battery life in portable applications.
• Current Capacity: It can supply up to 150mA of output current, catering to a wide range of low-power devices.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and current limit features to protect against excessive temperature and overcurrent conditions.
• Low Quiescent Current: The MIC5225YM5-TR is optimized for low quiescent current, minimizing power consumption when the device is in standby mode.
• Package: It comes in a compact SOT-23-5 package, making it suitable for high-density PCB layouts.

Applications:

The MIC5225YM5-TR is versatile and can be used in various applications, such as:

• Mobile Phones
• Personal Digital Assistants (PDAs)
• Digital Cameras
• Portable Media Players
• Wireless LAN Devices
• GPS Receivers

The MIC5225YM5-TR's combination of low dropout performance, high output accuracy, and protection features make it an excellent choice for designers looking to optimize their power management solutions. Microchip Technology's commitment to quality ensures that this LDO voltage regulator will provide reliable and consistent performance for a wide array of electronic devices.
