Overview of the MIC5295YD-TR LDO Voltage Regulator

The MIC5295YD-TR from Microchip Technology is a high-performance, low-dropout (LDO) voltage regulator designed to deliver a stable and precise output voltage. This component is particularly suitable for battery-powered devices, as it ensures a consistent power supply even when the input voltage is close to the output voltage. The MIC5295YD-TR is an ideal choice for applications that require low power consumption and high voltage accuracy.

Key Features

• Output Voltage: The device provides a fixed output voltage, making it suitable for a wide range of applications where a stable voltage is required to drive various components.
• High Accuracy: The MIC5295YD-TR offers excellent load and line regulation, ensuring the output voltage remains precise under varying conditions.
• Low Dropout: With its low dropout performance, the regulator operates efficiently even when the input voltage is very close to the output voltage, making it ideal for battery-operated devices.
• Thermal and Overcurrent Protection: The built-in thermal shutdown and current limit features provide protection against excessive temperature and current, enhancing the reliability and longevity of both the regulator and the system.
• Low Quiescent Current: The device's low idle current consumption is beneficial for portable and battery-powered applications, as it helps to extend battery life.

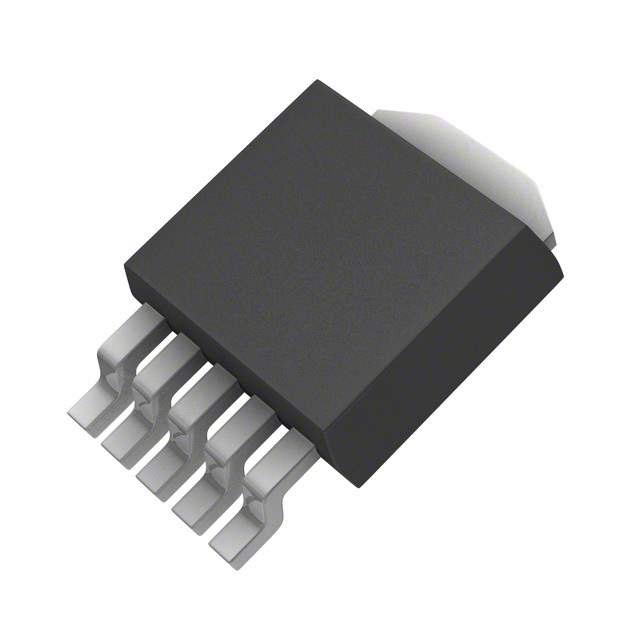

• Surface-Mount Package: The MIC5295YD-TR comes in a surface-mount package, which is suitable for automated assembly processes and helps to save space on the PCB.

Applications

The MIC5295YD-TR is versatile and can be used in various applications, including:

• Portable electronics
• Wireless communication devices
• Battery-powered equipment
• Microprocessor/microcontroller power supplies
• Consumer electronics

In summary, the MIC5295YD-TR LDO voltage regulator from Microchip Technology is a reliable solution for applications that demand high precision, low power consumption, and minimal space usage. Its protective features and stable performance make it a valuable component in any power management design.
