Microchip Technology's PIC12F1501T-I/MS Microcontroller

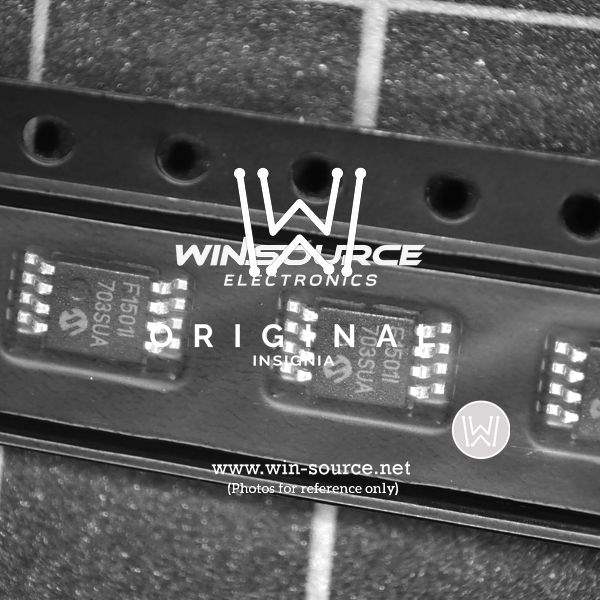

The PIC12F1501T-I/MS is a high-performance, 8-bit microcontroller from the renowned manufacturer, Microchip Technology. This compact and versatile MCU is housed in an 8-pin MSOP (Micro Small Outline Package) that is ideal for space-constrained applications. The device operates at a voltage range of 2.3V to 5.5V, which allows it to be used in both low-power and standard-power devices.

At the heart of the PIC12F1501T-I/MS is a powerful PIC® microcontroller core that offers a maximum CPU speed of 20MHz. It comes with 1.75KB of flash memory, which provides ample space for small to medium-sized applications. Additionally, the microcontroller is equipped with 64 bytes of EEPROM and 128 bytes of RAM, ensuring efficient data storage and processing capabilities.

One of the standout features of this microcontroller is its integrated 10-bit Analog-to-Digital Converter (ADC) with Computation (ADC2), which enhances its ability to handle analog signals and simplifies the implementation of complex analog signal processing tasks. This feature is particularly useful in applications such as sensor interfacing and analog signal monitoring.

The PIC12F1501T-I/MS also boasts a range of peripherals that include an Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) and a Master Synchronous Serial Port (MSSP) with SPI and I²C functionality. These communication interfaces allow the MCU to connect with other devices, sensors, and networks, making it highly adaptable to a variety of applications.

For designers concerned with safety and reliability, this microcontroller includes Power-on Reset (POR), Power-up Timer (PWRT), and Oscillator Start-up Timer (OST) which ensure stable operation during power-up sequences. In addition, the device features Brown-out Reset (BOR) and a Watchdog Timer (WDT) to prevent system crashes under adverse conditions.

In summary, the PIC12F1501T-I/MS from Microchip Technology is a versatile and reliable microcontroller that is well-suited for a wide range of embedded systems applications. Its combination of powerful features and small form factor make it an excellent choice for designers looking to optimize their projects for performance and space efficiency.
