Microchip Technology's PIC16F1503T-I/MG Microcontroller

Microchip Technology's PIC16F1503T-I/MG is a versatile and powerful microcontroller that offers a perfect blend of performance and features for a wide range of embedded applications. This 8-bit microcontroller is part of the PIC16F family, well-known for its ease of use, low power consumption, and robust instruction set.

Key Features

• Core: The device is built around a high-performance RISC CPU with a 35 instruction set, operating at a maximum speed of 20 MHz. Its architecture is designed to execute instructions in a single cycle, enhancing the overall efficiency of the microcontroller.
• Memory: It comes equipped with 1.75 KB of Flash program memory, allowing for flexible and reliable storage of application code. Additionally, the PIC16F1503T-I/MG offers 128 bytes of EEPROM data memory and 128 bytes of RAM, providing ample space for data manipulation and storage.
• I/O and Peripherals: The microcontroller features 12 I/O pins, which are highly configurable to suit various interfacing needs. It also includes a range of integrated peripherals such as an 8-bit timer, 16-bit timer, and a 10-bit Analog-to-Digital Converter (ADC) with up to four channels, enhancing its capability to interact with analog signals.
• Communication: For communication purposes, it supports various serial communication protocols including I2C, SPI, and UART, allowing for easy connectivity with other devices and sensors.
• Operating Conditions: The PIC16F1503T-I/MG operates within a voltage range of 2.3V to 5.5V, making it suitable for battery-operated and power-sensitive applications. Its temperature range of -40°C to +85°C ensures reliable operation under extreme conditions.

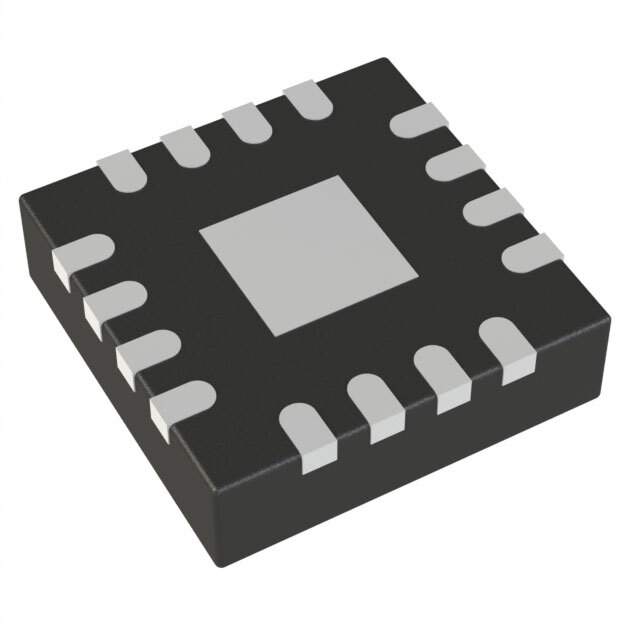

• Packaging: The microcontroller is offered in a 16-pin QFN package, which is ideal for space-constrained applications.

Applications

The PIC16F1503T-I/MG is an excellent choice for a variety of applications, including industrial control systems, automotive electronics, consumer electronics, and Internet of Things (IoT) devices. Its low power consumption and rich set of features make it particularly well-suited for portable and remote applications where power efficiency is critical.

Overall, the PIC16F1503T-I/MG from Microchip Technology is a reliable and cost-effective solution for designers looking to add intelligence and connectivity to their embedded projects.
