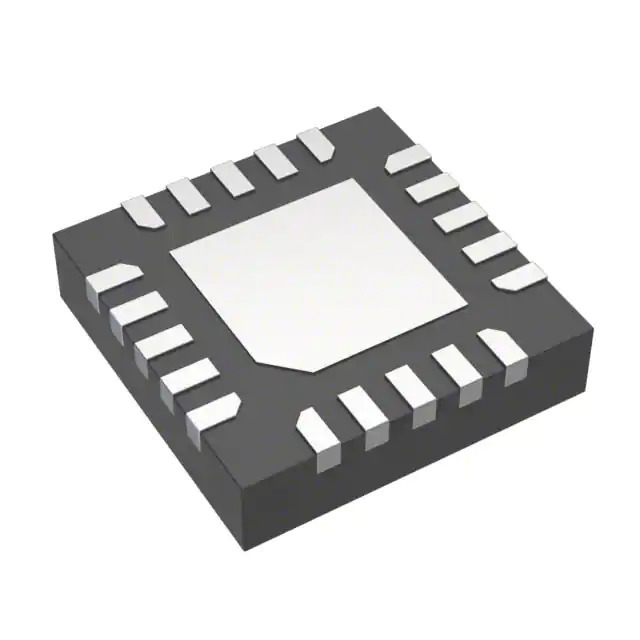

PIC16F15244-I/REB Microcontroller

The PIC16F15244-I/REB is a versatile and powerful microcontroller from Microchip Technology that is designed to cater to a wide range of applications, from simple to complex embedded systems. This microcontroller is part of the enhanced Mid-range Core with 49 Instruction, 16 Stack Levels family and is packed with a range of features that make it an ideal choice for designers and hobbyists alike.

Key Features

• Core: 8-bit CPU with an enhanced mid-range architecture.
• Speed: Up to 32 MHz internal oscillator.
• Memory: Features 7 KB of Flash memory and 512 Bytes of RAM.
• I/O Pins: 18 general-purpose I/O pins for versatile connectivity.
• Timers: Includes a variety of timers, including 8-bit and 16-bit timers, along with a Watchdog Timer for reliable system operation.
• ADC: 10-bit Analog-to-Digital Converter with Computation (ADCC) for precise analog signal measurement.
• Communication: Integrated I2C, SPI, and EUSART for serial communication.
• Operating Voltage: A wide operating voltage range from 2.3V to 5.5V.
• Temperature Range: Industrial temperature range (-40°C to +125°C).
• Package: Available in a 20-pin TSSOP package.

Applications

The PIC16F15244-I/REB is designed to be flexible enough to fit a broad spectrum of applications, including:

• Automotive systems
• Consumer electronics
• Industrial automation and control
• Internet of Things (IoT) devices
• Medical devices
• Smart sensors

Support and Resources

Microchip Technology provides extensive support and resources for the PIC16F15244-I/REB, including development tools, software libraries, and documentation to ensure a smooth development process. Designers can take advantage of the MPLAB X Integrated Development Environment (IDE) and MPLAB Code Configurator for streamlined programming and configuration.

The PIC16F15244-I/REB microcontroller is a testament to Microchip's dedication to providing innovative, reliable, and high-performance components for the electronics industry.
