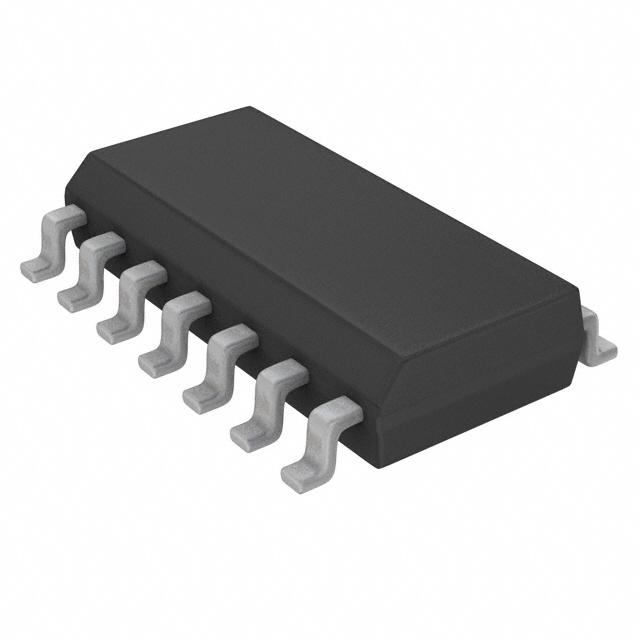

Microchip Technology's PIC16F684 Microcontroller

The PIC16F684 from Microchip Technology is a versatile and powerful 8-bit microcontroller that is widely used in a range of embedded systems applications. Designed with both ease of use and performance in mind, it is part of the popular PIC16 family known for its efficient architecture, rich set of features, and reliability in various types of electronic projects.

This microcontroller is built around Microchip's high-performance RISC CPU, which delivers a maximum speed of 20 MHz. It comes with 3.5KB of flash memory, which is ample space for storing application code, and 128 bytes of EEPROM data memory for retaining essential data even when the power is off. Additionally, it boasts 256 bytes of RAM, providing sufficient working memory for most small-scale applications.

One of the standout features of the PIC16F684 is its integrated 10-bit Analog-to-Digital Converter (ADC), which supports up to 12 channels. This ADC allows for precise conversion of analog signals to digital values, making the microcontroller ideal for interfacing with various sensors and performing complex measurements. The device also includes two comparators and a Pulse Width Modulation (PWM) module, which are essential tools for motor control, LED dimming, and other applications requiring precise control of voltage or current.

The PIC16F684 supports a wide voltage range from 2.0V to 5.5V, allowing it to be used in low-power and battery-powered applications. Its power-saving features include a Power-on Reset (POR), a Power-up Timer (PWRT), and an Oscillator Start-up Timer (OST), which help to ensure reliable operation during power transitions.

For communication purposes, the microcontroller is equipped with Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) capabilities, which facilitate serial communication with other microcontrollers, computers, or peripherals. This feature is invaluable for applications that require data logging, telemetry, or wireless communication.

Programming and customization of the PIC16F684 is made simple with the use of Microchip's MPLAB® Integrated Development Environment (IDE) and a wide range of development tools. The microcontroller is also supported by a robust selection of documentation and sample code, making it accessible to both beginners and experienced developers alike.

In summary, the PIC16F684 is a feature-rich and cost-effective solution for a multitude of embedded systems applications. Its comprehensive set of peripherals, low power consumption, and robust development support make it an excellent choice for designers looking to create sophisticated and reliable products.
