Microchip Technology's PIC16LF1503T-I/MG

The PIC16LF1503T-I/MG is a high-performance, 8-bit microcontroller from Microchip Technology, designed to cater to a wide array of applications ranging from consumer electronics to industrial automation. This particular microcontroller is part of the PIC16F family, known for its low-power consumption, versatility, and ease of use.

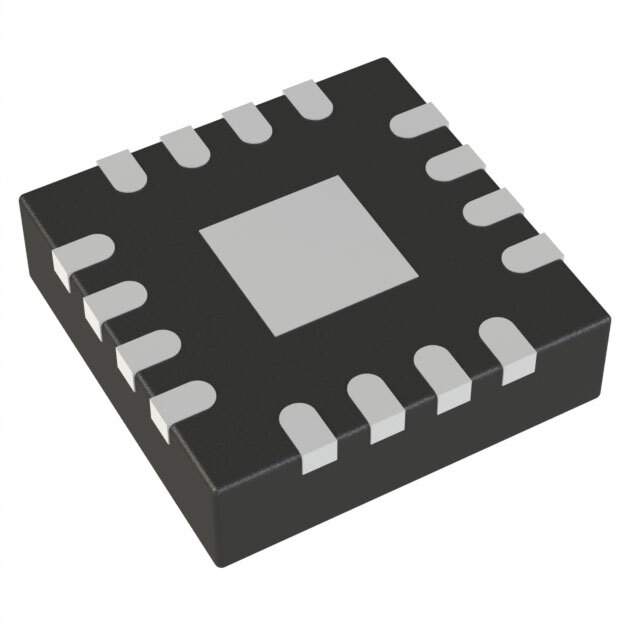

Encased in a 16-pin QFN package, the PIC16LF1503T-I/MG operates with an enhanced mid-range core. With a 31-level deep stack and 16 MHz internal oscillator, this MCU provides a robust platform for executing complex instructions with efficiency. The device operates at a voltage range of 1.8V to 3.6V, making it an excellent choice for battery-operated and power-sensitive applications.

One of the key features of the PIC16LF1503T-I/MG is its 3.5KB of flash memory, which allows ample space for application code, and 128 bytes of EEPROM for data storage that requires write/erase operations. Additionally, it comes with 256 bytes of RAM, ensuring smooth operation and multitasking capabilities.

The microcontroller includes an array of integrated peripherals such as an 8-bit timer, a 16-bit timer, and a watchdog timer to help maintain system integrity. Moreover, it boasts two PWM modules, a complement of comparators, and an Analog-to-Digital Converter (ADC) with up to 10 channels, enhancing its ability to handle complex analog and digital signal processing tasks.

Communication with other devices is made simple with the inclusion of a versatile serial communication interface that supports I²C, SPI, and UART protocols. This ensures that the PIC16LF1503T-I/MG can be easily integrated into a larger system or communicate with other microcontrollers and peripherals.

Designed with protection in mind, the device includes Power-on Reset (POR), Power-up Timer (PWRT), and Oscillator Start-up Timer (OST) to ensure reliable operation. Additionally, it features Brown-out Reset (BOR) and Extended Watchdog Timer (EWDT) to safeguard against unexpected power fluctuations and system failures.

Overall, the PIC16LF1503T-I/MG is a versatile and powerful microcontroller that provides designers with a compact, efficient, and cost-effective solution for a multitude of embedded system applications.
