Microchip Technology's PIC16LF1509-I/P Microcontroller

The PIC16LF1509-I/P is a high-performance, 8-bit microcontroller crafted by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. This microcontroller is part of the expansive PIC16F family known for its versatility and reliability in a wide range of applications.

Featuring a precision 16 MHz internal oscillator, the PIC16LF1509-I/P delivers the processing power necessary for complex tasks while its low-power features make it ideal for battery-powered and energy-saving applications. The device operates on a voltage range of 1.8V to 3.6V, making it particularly suitable for low-voltage operations.

Equipped with 14 KB of flash memory and 512 bytes of RAM, this microcontroller provides ample space for application code and data storage. The flash memory is self-programmable under software control, which simplifies firmware updates and enhances product flexibility. Additionally, the device includes an EEPROM with 256 bytes of data memory, useful for storing non-volatile data.

The PIC16LF1509-I/P boasts an array of integrated peripherals, including:

• Analog-to-Digital Converter (ADC) with up to 17 channels, offering a 10-bit resolution that ensures precise analog signal measurements.
• Two PWM modules that enable the creation of complex waveforms for motor control and LED dimming applications.
• Two Capture/Compare/PWM (CCP) modules, which are essential for timing and control operations.
• Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module, facilitating serial communication with support for RS-232, RS-485, and LIN protocols.
• Complementary Waveform Generator (CWG) module, which simplifies the generation of complementary waveforms for motor control and power conversion.

The microcontroller also features an array of safety and monitoring functions, including Power-On Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST), Brown-out Reset (BOR), and a Watchdog Timer (WDT) to ensure reliable operation under varying conditions.

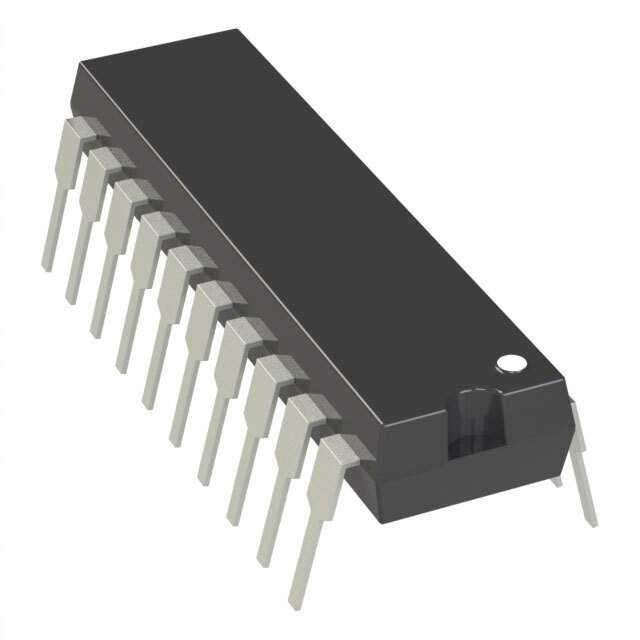

The PIC16LF1509-I/P comes in a 20-pin PDIP (Plastic Dual In-line Package), which is widely used and suitable for prototyping and production. It supports in-circuit serial programming (ICSP) for easy programming and development. This microcontroller is ideal for applications in automotive, consumer electronics, industrial automation, and many other fields where efficient and reliable control is paramount.

For developers and engineers, Microchip provides extensive support through its MPLAB Integrated Development Environment (IDE) and MPLAB Code Configurator (MCC) for streamlined development and quicker time-to-market.
