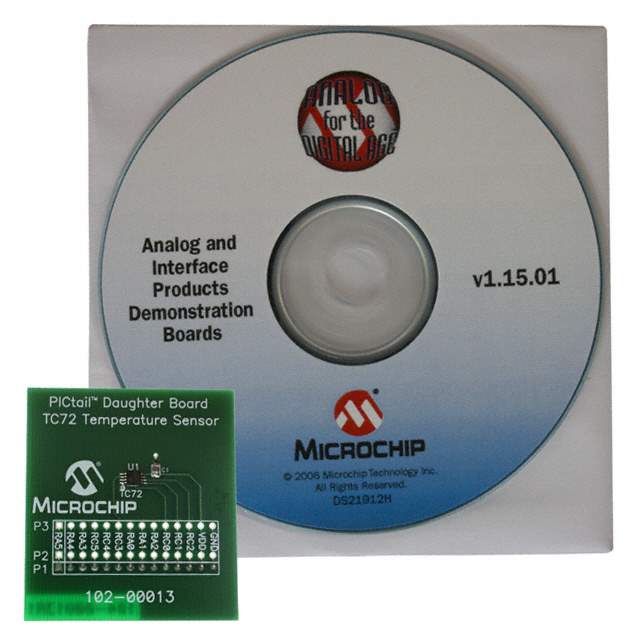

The TC72DM-PICTL is a precision digital temperature sensor from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This sensor is designed to provide accurate temperature readings in a digital format, making it ideal for a wide range of applications including industrial systems, consumer products, and any other systems requiring temperature monitoring and control.

Key Features

• High Accuracy: The TC72DM-PICTL offers a high level of accuracy, with a typical accuracy of ±2°C over the full temperature range of -55°C to +125°C.
• Digital Interface: This sensor communicates via a Serial Peripheral Interface (SPI) bus, allowing for easy integration with most microcontrollers and digital systems.
• Low Power Consumption: Designed for efficiency, it operates with a low power consumption, making it suitable for battery-powered applications.
• Wide Operating Voltage: The TC72DM-PICTL operates over a supply voltage range of 2.7V to 5.5V, accommodating various system power supplies.
• Programmable Resolution: It offers programmable resolution from 9 to 12 bits, giving designers flexibility in balancing the trade-off between resolution and conversion time.
• One-Shot and Shutdown Modes: These modes allow for reduced power usage when continuous temperature monitoring is not required, further prolonging battery life in portable applications.

Applications

The versatility of the TC72DM-PICTL makes it an excellent choice for a variety of applications, including:

• Environmental control systems
• Data logging and thermal protection for industrial equipment
• Consumer electronics temperature monitoring
• PC hardware monitoring
• Thermal management within embedded systems

Product Summary

The TC72DM-PICTL temperature sensor from Microchip Technology stands out with its precision, digital output, and low power consumption. Its programmable resolution and versatile power supply options make it a flexible solution for a multitude of temperature sensing needs. Whether for controlling HVAC systems, monitoring battery temperatures in portable devices, or ensuring the proper operation of high-performance computing hardware, the TC72DM-PICTL brings reliability and accuracy to temperature measurement tasks.
