Microchip Technology USB3319C-CP-TR USB 2.0 Transceiver

The USB3319C-CP-TR from Microchip Technology is a highly integrated USB 2.0 transceiver chip that offers a versatile solution for adding USB connectivity to a wide range of electronic devices. This high-speed transceiver is designed to support the full range of USB 2.0 applications, operating at up to 480 Mbps, and is backward compatible with USB 1.1 at 12 Mbps.

Key Features

• Interface Compliance: The USB3319C-CP-TR complies with the UTMI+ Level 3 specification for USB 2.0 transceivers, ensuring seamless integration with any USB 2.0 compliant host or device controller.
• Low Power Consumption: It features low power consumption with a 3.3V I/O voltage, which is essential for battery-powered devices, making it an ideal choice for portable and handheld applications.
• Highly Integrated Design: The transceiver integrates termination resistors and an on-chip voltage regulator, reducing the number of external components required and simplifying design efforts.
• Industrial Temperature Range: With an operational temperature range of -40°C to 85°C, the USB3319C-CP-TR is suitable for use in harsh industrial environments.

Applications

The versatility of the USB3319C-CP-TR makes it suitable for a diverse array of applications, including:

• Mobile Phones and Smart Devices
• Portable Media Players
• Digital Cameras
• GPS Units
• Gaming Consoles
• Networking Equipment

Package and Availability

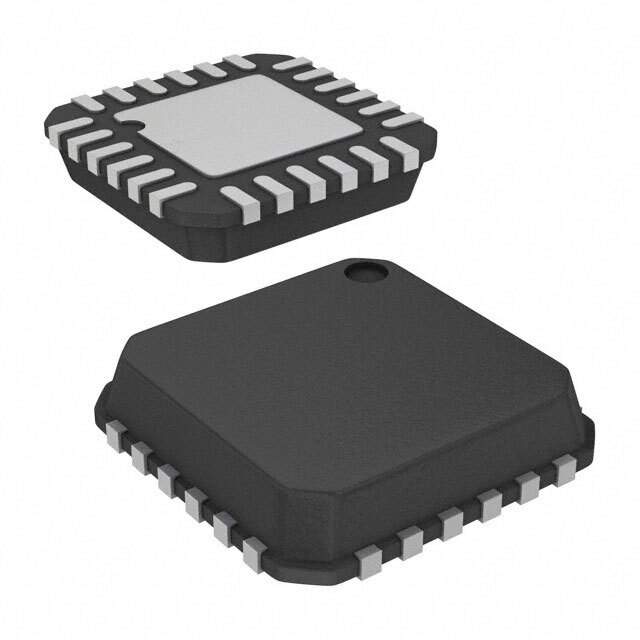

The USB3319C-CP-TR is offered in a compact, 24-pin QFN package, which is RoHS compliant and suitable for reflow soldering. This product is available in tape and reel packaging, facilitating efficient assembly for high-volume production. As a product of Microchip Technology, it is backed by the company's commitment to quality and long-term availability.

Conclusion

With its high-speed performance, low power consumption, and ease of integration, the USB3319C-CP-TR from Microchip Technology is an excellent choice for designers looking to incorporate reliable USB 2.0 connectivity into their electronic products.
