Same model may have multiple batches, images only for reference.

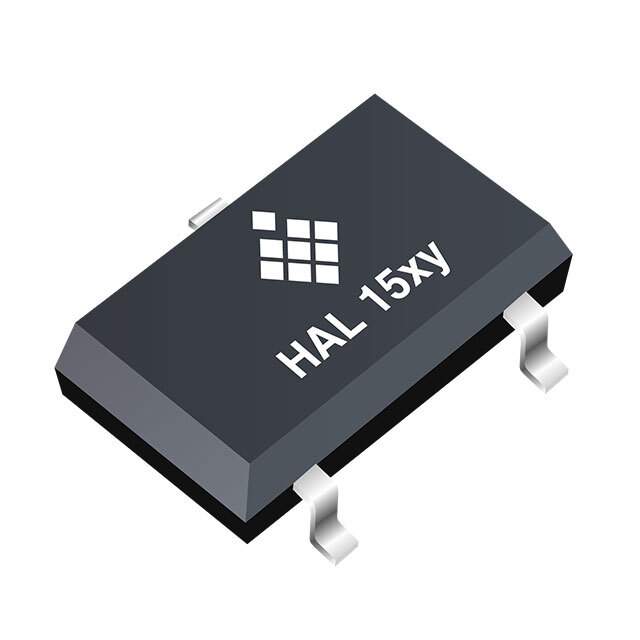

HAL1502SU-A Real Image
Same model may have multiple batches, images only for reference.

HAL1502SU-A

Part No HAL1502SU-A
Manufacturer Micronas GmbH
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH LATCH SOT23-3 / Digital Switch Latch Open Drain Hall Effect SOT-23-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors>Switches (Solid State)
Mfr Micronas GmbH
Series Automotive, AEC-Q100
Package Tape & Reel
Function Latch
Technology Hall Effect
Polarization North Pole, South Pole
Sensing Range 2.5mT Trip, -2.5mT Release
Test Condition -
Voltage - Supply 2.7V ~ 24V
Current - Supply (Max) -
Current - Output (Max) -
Output Type Open Drain
Features -
Temperature Range - Operating -40°C ~ 70°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-23-3
Package / Case TO-236-3, SC-59, SOT-23-3
Base Product Number HAL1502
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 10,000 pcs
Win Source Part Number 1382200-HAL1502SU-A
Ultra Librarian 3D Model Ultra Librarian HAL1502SU-A CAD Model

Description

The HAL1502SU-A is a solid-state magnetic sensor with a Hall effect technology.

  • Output Type: Open Drain
  • Function: Latch
  • Pole Detection: North/South Pole
  • Sensing Range (Trip): 2.5mT
  • Sensing Range (Release): -2.5mT
  • Voltage Supply: 2.7V to 24V
  • Mounting Type: Surface Mount
  • Package: TO-236-3, SC-59, SOT-23-3
  • Operating Temperature: -40°C to 70°C
  • Manufacturer: Micronas GmbH
  • Standard Package: 10,000 pcs
