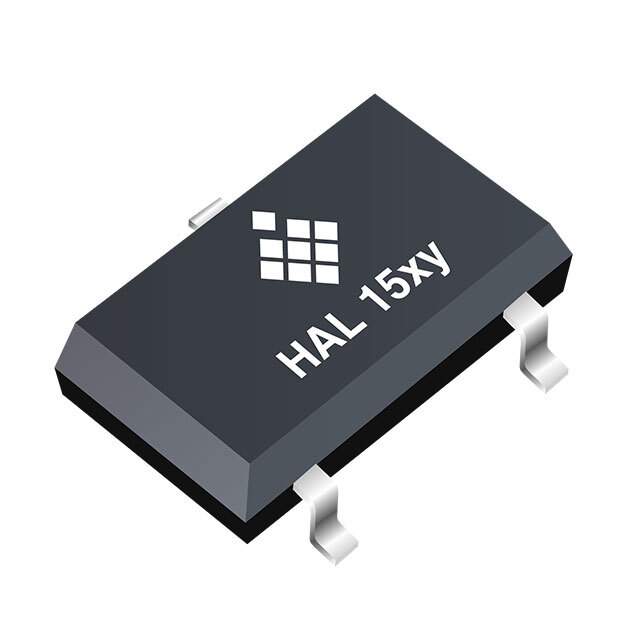

The HAL1562SU-A is a linear Hall-effect sensor manufactured by Micronas GmbH (now TDK-Micronas). This sensor is designed for precise measurement of magnetic fields in a variety of applications. Its linear output makes it suitable for applications requiring accurate and repeatable magnetic field detection.

Applications

• Current Sensing: Used in current sensors to measure current flow by detecting the magnetic field generated by the current.
• Position Sensing: Employed in rotary and linear position sensors to determine the position of a moving part.
• Proximity Detection: Utilized in proximity switches to detect the presence of a magnetic object.
• Magnetic Field Measurement: Used in magnetic field meters and gaussmeters to measure the strength of magnetic fields.
• Brushless DC (BLDC) Motor Control: Employed in BLDC motor control systems for rotor position sensing.

Features

• Linear Output: Provides a linear output voltage proportional to the applied magnetic field.
• High Sensitivity: Offers high sensitivity for detecting weak magnetic fields.
• Low Noise: Features low noise performance for accurate and reliable measurements.
• Wide Operating Voltage Range: Operates over a wide voltage range, typically from 4.5V to 5.5V.
• Temperature Compensation: Includes temperature compensation circuitry to minimize the effects of temperature variations on the output signal.
• Small Package: Available in a small surface-mount package for easy integration into compact designs.

Benefits

• Accurate Measurement: Provides accurate and repeatable measurement of magnetic fields.
• Reliable Performance: Offers reliable performance over a wide range of operating conditions.
• Easy Integration: Easy to integrate into various applications due to its linear output and small package.
• Cost-Effective: Provides a cost-effective solution for magnetic field sensing.
• Stable Output: Provides a stable output voltage with minimal drift.

Additional Details

The HAL1562SU-A typically has a sensitivity of several mV/mT (millivolts per millitesla). It operates over a temperature range of -40°C to +150°C, making it suitable for harsh environments. The output voltage is usually centered around half the supply voltage when no magnetic field is present. An external amplifier circuit can be used to amplify the output signal and improve the signal-to-noise ratio. The sensor is often used with a microcontroller for signal processing and data acquisition.
