Same model may have multiple batches, images only for reference.

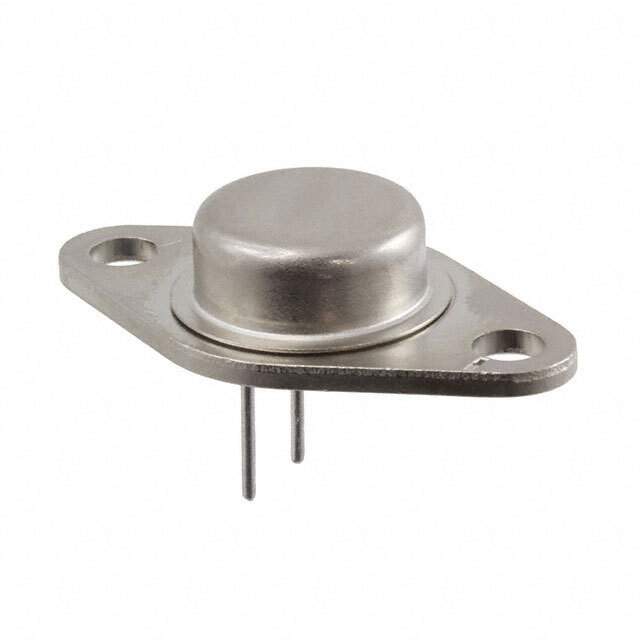

2N6317 Real Image
Same model may have multiple batches, images only for reference.

2N6317

Part No 2N6317
Manufacturer Microsemi Corporation
Catalog Transistors (BJT) - Single
Description POWER TRANSISTORS(7.0A,90W) | TRANS PNP 60V 7A TO-213AA
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Transistor Type PNP
Current - Collector (Ic) (Maximum) 7A
Voltage - Collector Emitter Breakdown (Maximum) 60V
Vce Saturation (Maximum) at Ib, Ic 2V at 1.75A, 7A
Current - Collector Cutoff (Maximum) 500μA
DC Current Gain (hFE) (Minimum) at Ic, Vce 25 at 2.5A, 4V
Maximum Power 90W
Temperature Range - Operating -65°C ~ 200°C
Mounting Style Through Hole
Manufacturer Package TO-213AA, TO-66-2
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1124104-2N6317
Manufacturer Homepage www.mospec.com.tw
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N6317 CAD Model

Description

The Microsemi Corporation PNP transistor is a high-performance device designed for use in various electronic applications.

  • Maximum Voltage: 60V
  • Maximum Current: 7A
  • Temperature Range: -65°C to 200°C
  • Vce Saturation: 2V @ 1.75A, 7A
  • DC Current Gain (hFE): 25 @ 2.5A, 4V
  • Package: TO-213AA, TO-66-2
  • Mounting: Through Hole
  • Maximum Power: 90W
  • Supply and Demand: Limited
  • Popularity: Medium
