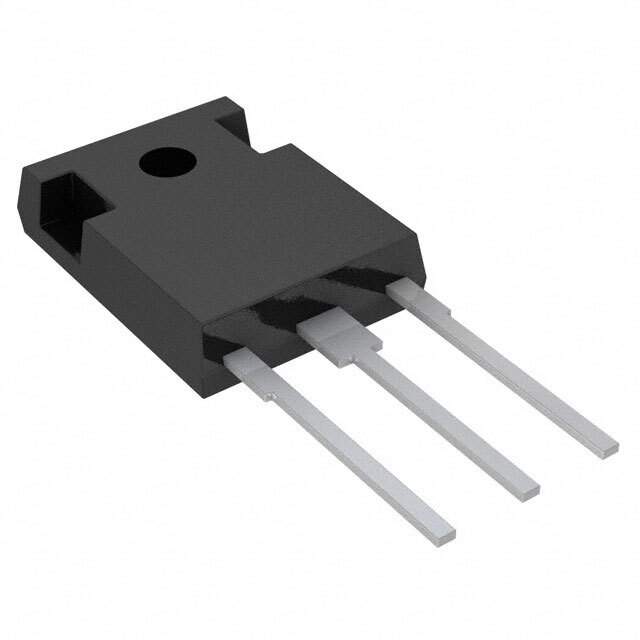

The ARF444 is a high-power RF MOSFET designed for a variety of high-frequency applications. Manufactured by Microsemi Corporation, this device is known for its robust performance, high gain, and reliability in demanding environments.

Applications:

• HF/VHF Communications: Used in high-power amplifiers for amateur radio, commercial radio, and military communications systems.
• Industrial Heating: Provides the RF power for industrial heating and drying equipment.
• Medical Applications: Employed in RF power generators for MRI and other medical equipment.
• Plasma Generators: Used as the RF source for plasma etching and deposition systems.
• RF Transmitters: Incorporated into the final amplifier stage of RF transmitters for broadcast and telecommunications.

Features:

• High Power Output: Delivers substantial RF power for demanding applications.
• High Gain: Provides significant signal amplification, reducing the drive power requirements.
• High Breakdown Voltage: Ensures reliable operation under high-voltage conditions.
• Low Input Capacitance: Minimizes input loading and simplifies impedance matching.
• Excellent Thermal Stability: Designed for efficient heat dissipation, maintaining stable performance at high power levels.
• Robust Construction: Built to withstand harsh environments and demanding operating conditions.
• Gold Metallization: Enhances reliability and prevents corrosion.

Benefits:

• Increased System Performance: High power and gain improve the performance of RF systems.
• Improved Reliability: Robust design and high breakdown voltage ensure reliable operation in demanding applications.
• Simplified Design: Low input capacitance simplifies impedance matching, reducing design complexity.
• Enhanced Thermal Management: Excellent thermal stability allows for operation at higher power levels without overheating.
• Long Lifespan: Gold metallization and robust construction contribute to a long and reliable operating life.

Additional Details:

The ARF444 is typically supplied in a flange-mount package to facilitate heat sinking. Its electrical characteristics, such as power gain, drain efficiency, and operating frequency, are specified in the device's datasheet. Proper heat sinking is essential for maintaining reliable operation and preventing thermal runaway. Detailed application notes and design guidelines are usually available from Microsemi to assist designers in implementing the ARF444 in their systems.
