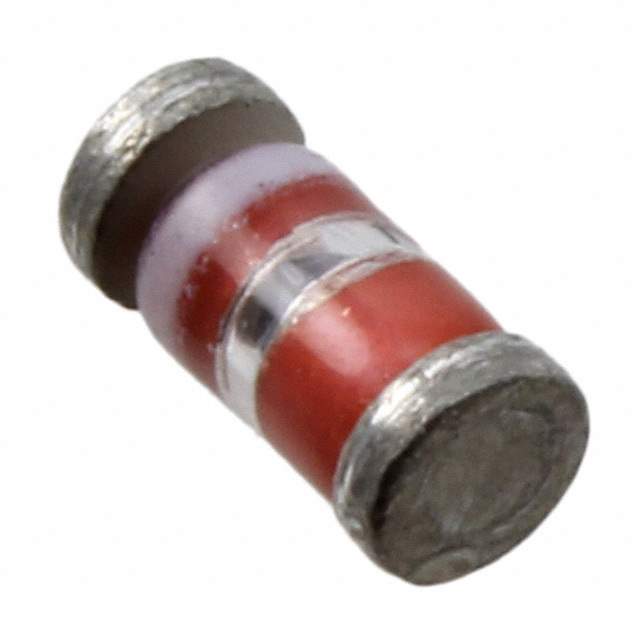

JAN1N4100UR-1

Part No JAN1N4100UR-1
Manufacturer Microsemi Corporation
Catalog Diodes - Zener - Single
Description SILICON 400mA LOW NOISE ZENER DIODES | DIODE ZENER 7.5V DO213AA
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Voltage - Zener (Nom) (Vz) 7.5V
Tolerance ±5%
Impedance (Maximum) (Zzt) 200 Ohms
Current - Reverse Leakage at Vr 1μA at 5.7V
Voltage - Forward (Vf) (Maximum) at If 1.1V at 200mA
Temperature Range - Operating -65°C ~ 175°C
Mounting Style SMD
Manufacturer Package DO-213AA (Glass)
Supplier Device Package DO-213AA
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191358-JAN1N4100UR-1
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JAN1N4100UR-1 CAD Model

Description

The JAN1N4100UR-1 is a Zener diode manufactured by Microsemi Corporation. It is designed for voltage regulation and surge protection in various electronic circuits. This diode is characterized by its robust construction and high reliability, making it suitable for demanding applications where consistent performance is crucial.

Applications:

  • Voltage regulation in power supplies
  • Transient voltage suppression
  • Clipping and clamping circuits
  • Reference voltage sources
  • Overvoltage protection

Features:

  • High reliability
  • Robust construction
  • Precise voltage regulation
  • Low reverse leakage current
  • Hermetically sealed package

Benefits:

  • Stable voltage output
  • Protection against voltage spikes
  • Extended lifespan in harsh environments
  • Consistent performance over a wide temperature range
  • Improved circuit stability

Additional Details:

The JAN1N4100UR-1 is a surface-mount Zener diode. It is designed to maintain a specific voltage across its terminals when reverse biased. This characteristic makes it ideal for regulating voltage levels in electronic circuits. The diode's hermetically sealed package ensures its resistance to moisture and other environmental factors, contributing to its long-term reliability. Its fast response time enables it to effectively suppress transient voltage spikes, protecting sensitive components from damage. The specific Zener voltage and power dissipation ratings can vary, it's critical to consult the manufacturer's datasheet for precise values before use in any application. This part is typically used in military and aerospace applications requiring high-reliability components.
