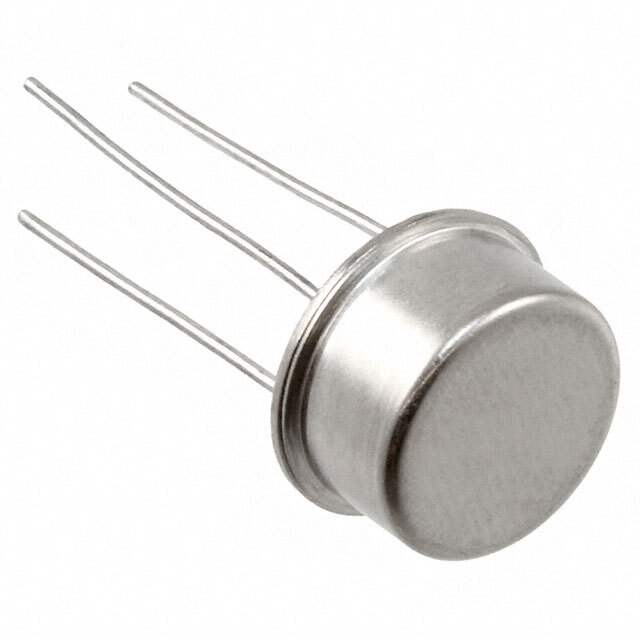

The Microsemi Corporation MOSFET 173003 is a through-hole N-channel polarity electronic component that is part of the Discrete Semiconductor Products category.

• Maximum Power Dissipation: 800mW (Tc)
• Drain-Source Breakdown Voltage: 100V
• Continuous Drain Current @ 25°C: 6A (Tc)
• Gate-Source Threshold Voltage: 4V @ 250μA
• Maximum Rds On @ Id,Vgs: 350 mOhm @ 6A, 10V
• Maximum Gate-Source Voltage: ±20V
• Maximum Gate Charge: 18nC @ 10V
• Operating Temperature Range: -55°C to 150°C (TJ)
• Case/Package: TO-39
• Dimension: TO-205AF Metal Can
• Drive Voltage (Max Rds On, Min Rds On): 10V
• Status: Obsolete (EOL)
• Supply and Demand Status: Limited
