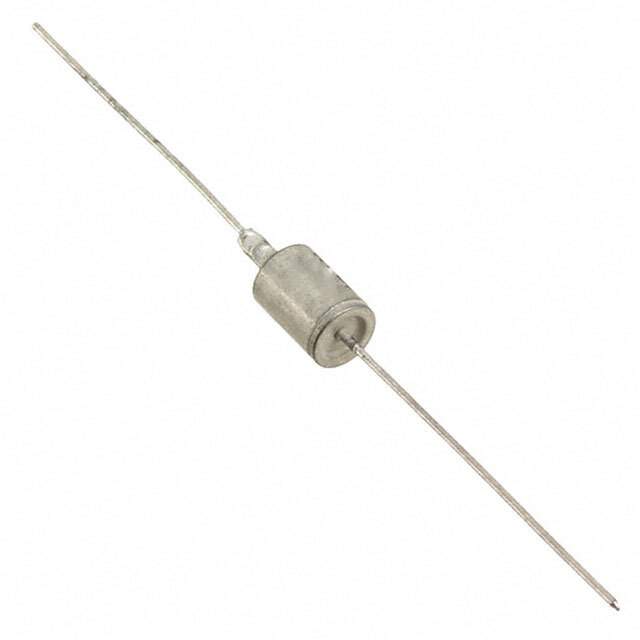

JANTX1N5639A

Name: JANTX1N5639A
Brand: Microsemi Corporation
SKU: 608759
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JANTX1N5639A
Manufacturer	Microsemi Corporation
Catalog	TVS - Diodes
Description	1500 WATT UNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR \| TVS DIODE 15.3V 25.2V DO13
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Microsemi Corporation
Packaging	Bulk
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff	15.3V
Voltage - Breakdown (Minimum)	17.1V
Voltage - Clamping (Maximum) at Ipp	25.2V
Current - Peak Pulse (10/1000μs)	59.5A
Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-65°C ~ 175°C
Mounting Style	Through Hole
Manufacturer Package	DO-13
Supplier Device Package	DO-13 (DO-202AA)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1191447-JANTX1N5639A
Manufacturer Homepage	www.microsemi.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian JANTX1N5639A CAD Model

Alternative Products

Description

The JANTX1N5639A is a Zener diode manufactured by Microsemi Corporation. It is a through-hole device with a peak pulse current of 59.5A and a power of 1500W (1.5kW).

Mounting Type: Through-Hole
Peak Pulse Current: 59.5A
Power: 1500W (1.5kW)
Voltage Breakdown: 17.1V
Voltage Clamping: 25.2V @ Ipp
Package: DO-13 (DO-202AA)
Operating Temperature: -65°C to 175°C
Popularity: Medium
Manufacturer Package: DO-13
Pack Quantity: 1
MSL Level: 1 (Unlimited)
