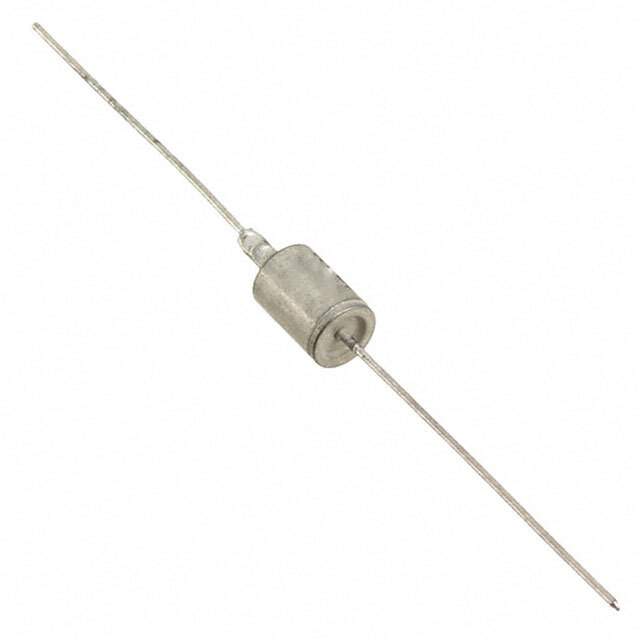

JANTX1N6052A Real Image
Same model may have multiple batches, images only for reference.

JANTX1N6052A

Part No JANTX1N6052A
Manufacturer Microsemi Corporation
Catalog TVS - Diodes
Description 1500 WATT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR | TVS DIODE 30V 49.9V DO13
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Microsemi Corporation
Packaging Bulk
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff 30V
Voltage - Breakdown (Minimum) 34.2V
Voltage - Clamping (Maximum) at Ipp 49.9V
Current - Peak Pulse (10/1000μs) 30A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package DO-13
Supplier Device Package DO-13 (DO-202AA)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191457-JANTX1N6052A
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTX1N6052A CAD Model

Description

The Microsemi Corporation JANTX1N6052A is a zener-type electronic component product with a medium popularity.

  • Packaging: Bulk
  • Mounting Style: Through-Hole
  • Product Type: Zener Diode
  • Device Package: DO-13 (DO-202AA)
  • Operating Temperature Range: -55°C to 175°C
  • Manufacturer Homepage: www.microsemi
  • Supply and Demand Status: Limited
  • Voltage Breakdown (Minimum): 34.2V
