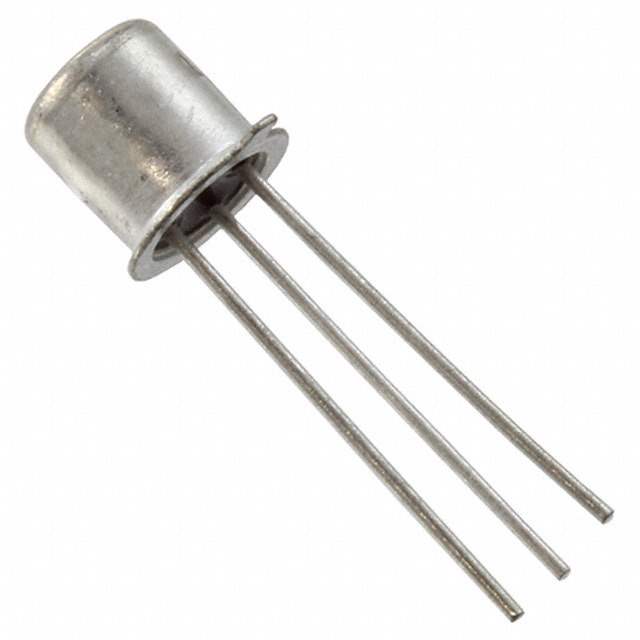

JANTX2N3700

Name: JANTX2N3700
Brand: Microsemi Corporation
SKU: 165857
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	JANTX2N3700
Manufacturer	Microsemi Corporation
Catalog	Transistors (BJT) - Single
Description	TRANS NPN 80V 1A
Datasheet	JANTX2N3700 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Microsemi Corporation
Packaging	Bulk
Status	Active
Transistor Polarity	NPN
Maximum Current Collector	1A
VCEO Maximum Collector-Emitter Breakdown Voltage	80V
Max Vce (sat)	500mV @ 50mA, 500mA
Collector Cut-off Current(Max)	10nA
Typical Gain (hFE) (Min)	50 @ 500mA, 10V
Maximum Power Dissipation	500mW
Temperature Range - Operating	-65°C to 200°C (TJ)
Mounting	Through Hole
Case / Package	TO-18 (TO-206AA)
Win Source Part Number	018142-JANTX2N3700
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian JANTX2N3700 CAD Model

Alternative Products

Description

The Microsemi Corporation 018142-JANTX2N3700 is a high popularity electronic component that belongs to the discrete semiconductor products category.

Popularity: high
Supply and Demand Status: limited
Component Type: active
Packaging: bulk
Mounting: through a hole
Transistor Type: NPN
Collector-Emitter Breakdown Voltage: 80V
Maximum Current Collector: 1A
Collector Cut-Off Current(max): 10nA
Typical Gain (hFE) (Min): 50 @ 500mA, 10V
Maximum Power Dissipation: 500mW
