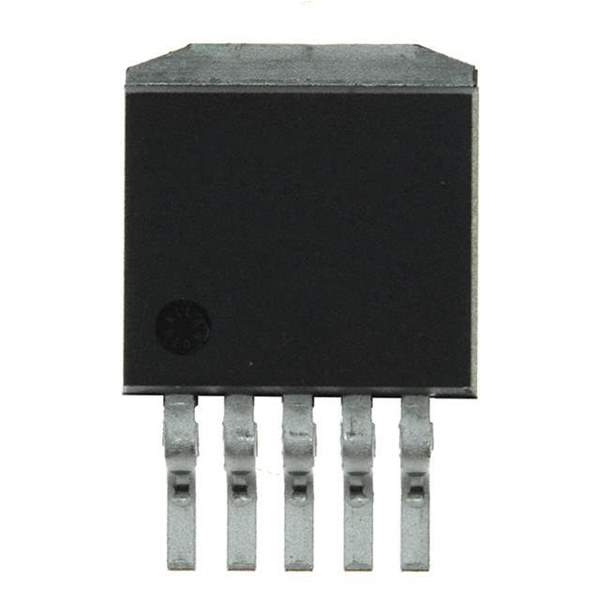

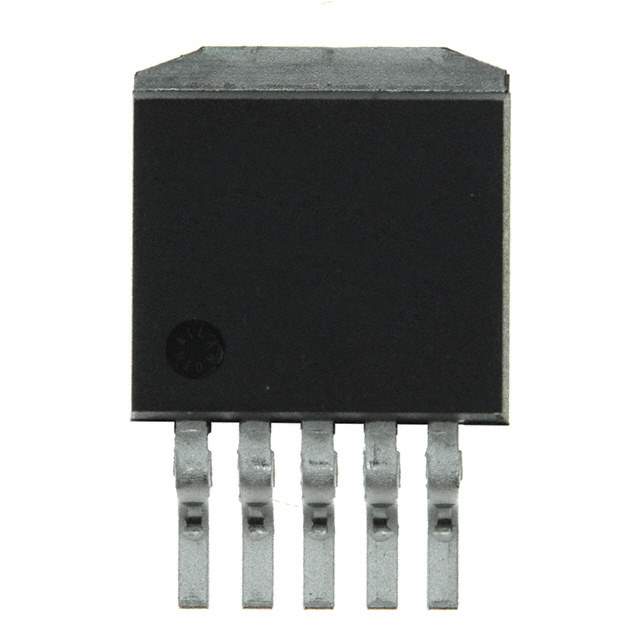

LX8580A-00CDD Real Image
Same model may have multiple batches, images only for reference.

LX8580A-00CDD

Part No LX8580A-00CDD
Manufacturer Microsemi Corporation
Catalog PMIC - Voltage Regulators - Linear
Description 7.5A Very Low Dropout Positive Regulator | IC REG LIN POS ADJ 7.5A TO263-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microsemi Corporation
Packaging Tube
Status Obsolete
Output Type Adjustable
Voltage - Input (Maximum) 13V
Min/Fixed Output Voltage 2V
Maximum Output Voltage 2.85V
Maximum Dropout Voltage 0.7V at 7.5A
Output Current 7.5A
Current - Quiescent (Iq) 10mA
Protection Features Over Current, Over Temperature
Temperature Range - Operating 0°C ~ 125°C
Mounting Style SMD
Manufacturer Package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Supplier Device Package TO-263-5
Family Part Number LX8580
Manufacturer Pack Quantity 750
MSL Level 2 (1 Year)
Win Source Part Number 1209756-LX8580A-00CDD
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LX8580A-00CDD CAD Model

Description

The Microsemi Corporation's LX8580A-00CDD is an adjustable output type integrated circuit that falls under the category of electronic components.

  • Maximum output voltage: 2.85V
  • Maximum dropout voltage: 0.7V @ 7.5A
  • Protection features: overcurrent and over-temperature protection
  • Manufacturer package: TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
  • Supply and demand status: sufficient
  • Family part number: LX8580
  • Manufacturer pack quantity: 750
  • MSL level: 2 (1 year)
  • Voltage input: 13V
