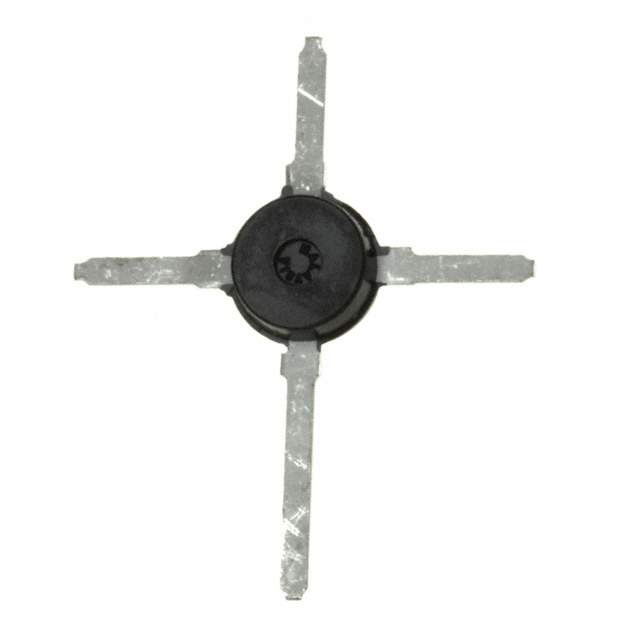

MRF553G Real Image
Same model may have multiple batches, images only for reference.

MRF553G

Part No MRF553G
Manufacturer Microsemi Corporation
Catalog Transistors - FETs, MOSFETs - RF
Description TRANS NPN 16V 500MA POWERMACRO / Trans RF BJT NPN 16V 0.5A 4-Pin Power Macro
Datasheet
MRF553G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Maximum) 16V
Frequency - Transition 175MHz
Gain 11dB ~ 13dB
Power - Max 3W
DC Current Gain (hFE) (Minimum) @ Ic, Vce 30 @ 250mA, 5V
Current - Collector (Ic) (Maximum) 500mA
Mounting SMD
Package Power Macro
Manufacturer Package Power Macro
Win Source Part Number 789422-MRF553G
Popularity Medium
Supply and Demand Status Limited
Family Name MRF553
Introduction Date September 22, 2005
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MRF553G CAD Model

Description

The Microsemi Corporation MRF553G is a NPN transistor that is designed for high frequency applications.

  • Transition Frequency: 175MHz
  • Maximum Power Output: 3W
  • Gain: 11dB to 13dB
  • Current Collector: 500mA
  • Voltage Collector Emitter Breakdown: 16V
  • DC Current Gain: 30 @ 250mA, 5V
  • Package: Power Macro
  • Mounting: SMD
  • Discrete Semiconductor Products: Yes
  • Cross-Reference: NTE480, MRF455, MRF492, BLU10/12
  • Introduction Date: September 22, 2005
  • Status: Obsolete (EOL)
