Same model may have multiple batches, images only for reference.

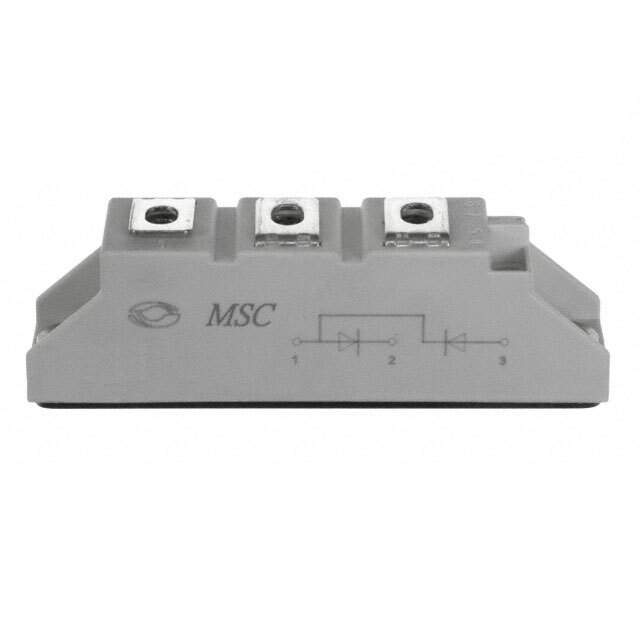

MSKD70-12 Real Image
Same model may have multiple batches, images only for reference.

MSKD70-12

Part No MSKD70-12
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.2KV 70A D1
Datasheet
MSKD70-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200V (1.2kV)
Current - Average Rectified (Io) (per Diode) 70A
Voltage - Forward (Vf) (Max) @ If 1.48V @ 200A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 1200V
Mounting Chassis Mount
Case / Package D1
Win Source Part Number 002153-MSKD70-12
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian MSKD70-12 CAD Model

Description

The Microsemi Corporation MSKD70-12 is a high-quality diode that is widely used in various electronic devices.

  • Voltage: 1200V (1.2kV)
  • Forward Voltage: 1.48V @ 200A
  • Applications: power supplies, motor controls, and inverters
  • Package: bulk
  • Mounting: chassis mount
  • Status: obsolete (EOL)
