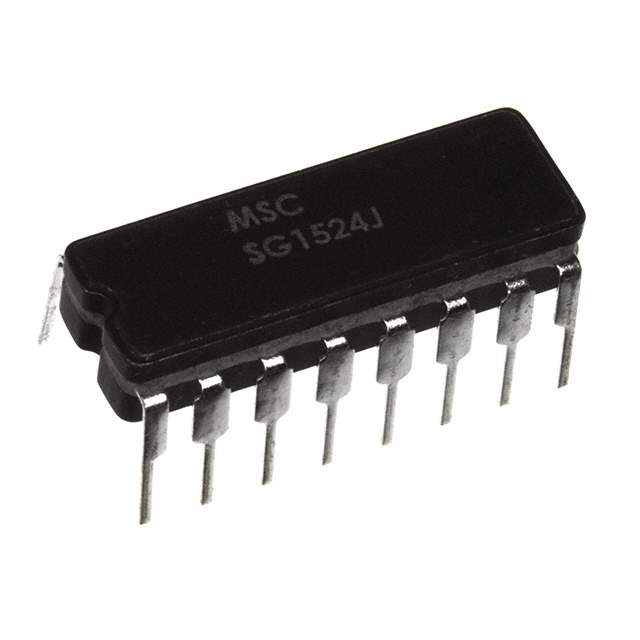

SG1524J Real Image SG1524J real image
Same model may have multiple batches, images only for reference.
SG1524J Real Image SG1524J real image
SG1524J Real Image SG1524J real image
Same model may have multiple batches, images only for reference.

SG1524J

Part No SG1524J
Manufacturer Microsemi Corporation
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR MULT TOPOLOGY 16DIP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microsemi Corporation
Packaging Tube/Rail
Status Active
Output Type Transistor Driver
Purpose Step-Down, Step-Up/Step-Down
Topology Buck, Flyback, Push-Pull
Number of Outputs 2
Output Phases 1
Supply Voltage - Operating 8 V to 40 V
Frequency - Switching 100kHz to 300kHz
Duty Cycle (Max) 49%
Synchronous Rectifier Yes
Clock Sync No
Control Features Enable
Temperature Range - Operating -55°C to 125°C (TJ)
Case / Package 16-CERDIP
Win Source Part Number 046835-SG1524J
Popularity Medium
Supply and Demand Status Limited
Quantity per package 150
Ultra Librarian 3D Model Ultra Librarian SG1524J CAD Model

Description

The Microsemi Corporation electronic component with the Win Source Part Number 046835-SG1524J is a limited supply product with medium popularity.

  • Purpose: Step-down, Step-up/Step-down
  • Topology: Buck, Flyback, Push-Pull
  • Frequency-Switching Range: 100kHz to 300kHz
  • Control Features: Enable
  • Outputs: Two
  • Rectifier: Synchronous
  • Output Phases: One
  • Maximum Duty Cycle: 49 percent
  • Clock Sync: No
  • Case/Package: 16-CERDIP
  • Operating Temperature Range: -55°C to 125°C (TJ)
  • Supply Voltage Operating Range: 8V to 40V
