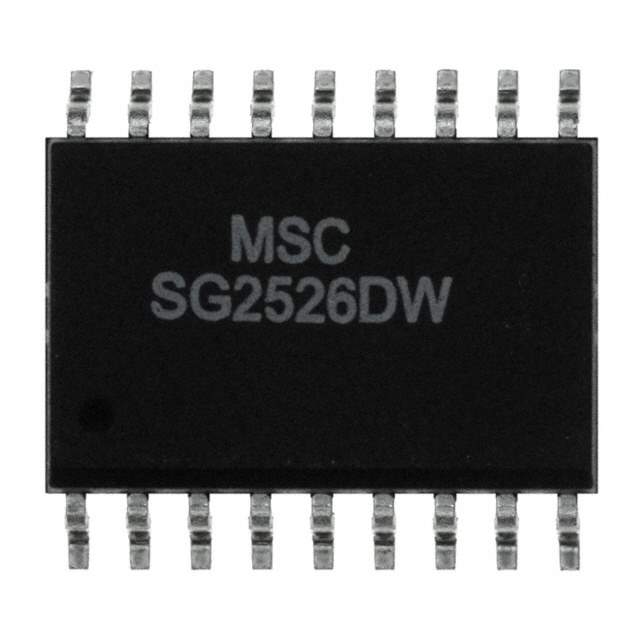

SG2526DW Real Image
Same model may have multiple batches, images only for reference.

SG2526DW

Part No SG2526DW
Manufacturer Microsemi Corporation
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK/FLYBACK 18SOIC
Datasheet
SG2526DW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microsemi Corporation
Status Active
Output Type Transistor Driver
Purpose Step-Down, Step-Up/Step-Down
Topology Buck, Flyback
Number of Outputs 2
Output Phases 1
Supply Voltage - Operating 8 V to 35 V
Frequency - Switching 1Hz to 350kHz
Duty Cycle (Max) 49%
Synchronous Rectifier Yes
Clock Sync No
Control Features Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Temperature Range - Operating -25°C to 85°C (TA)
Case / Package 18-SOIC
Win Source Part Number 1095485-SG2526DW
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SG2526DW CAD Model

Description

The Microsemi Corporation SG2526DW is a transistor driver for buck and flyback topologies with a switching frequency range of 1Hz to 350kHz.

  • Topology: Buck, Flyback
  • Switching Frequency Range: 1Hz to 350kHz
  • Features: Dead Time Control, Enable, Frequency Control, Reset, Soft Start
  • Outputs: 2
  • Synchronous Rectifier: Yes
  • Purpose: Step-Down, Step-Up/Step-Down
  • Operating Temperature Range: -25°C to 85°C (TA)
  • Supply Voltage: 8 V to 35 V
  • Package: 18-SOIC
