Same model may have multiple batches, images only for reference.

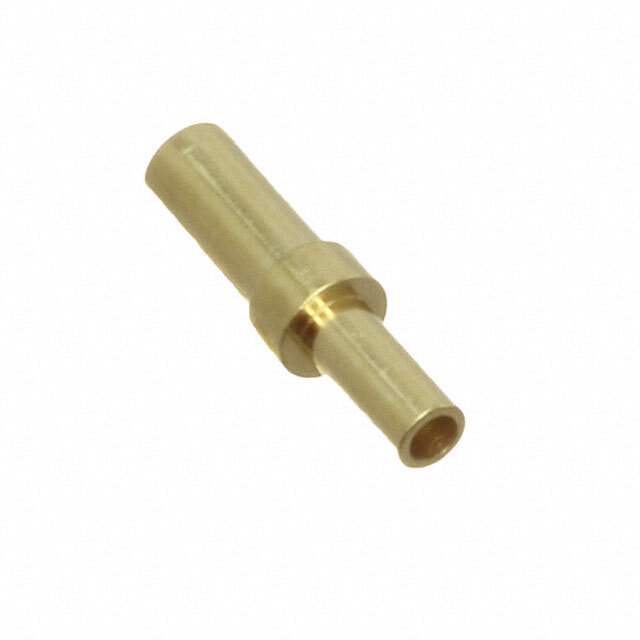

0326-3-19-15-06-27-10-0 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

0326-3-19-15-06-27-10-0

Part No 0326-3-19-15-06-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .022-.032 SWAGE
Datasheet
0326-3-19-15-06-27-10-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Mill-Max Manufacturing Corp.
Packaging Bulk
Part Status Active
Tail Type No Tail
Termination Swage
Length - Overall 0.325" (8.26mm)
Accepts Pin Diameter 0.022" ~ 0.032" (0.56mm ~ 0.81mm)
Pin Hole Diameter 0.051" (1.30mm)
Mounting Hole Diameter 0.060" (1.52mm)
Flange Diameter 0.094" (2.39mm)
Ultra Librarian 3D Model Ultra Librarian 0326-3-19-15-06-27-10-0 CAD Model

Description

Pin Receptacle Connector 0.022" ~ 0.032" (0.56mm ~ 0.81mm) No Tail Swage
