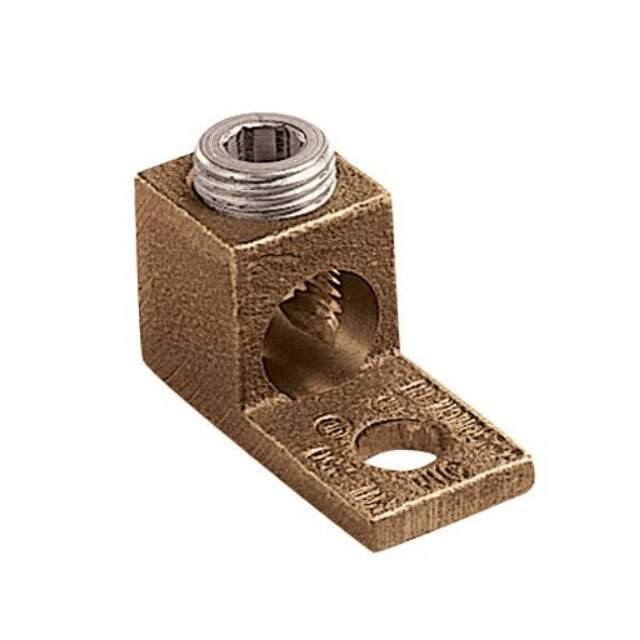

Same model may have multiple batches, images only for reference.

PNL-500-3

Name: PNL-500-3
Brand: Panduit Corp
SKU: 1083546
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	PNL-500-3
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT LUG 4 AWG / Terminal Connector Rectangular Lug, Grounding 500MCM (kcmil)-4 AWG
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr	Panduit Corp
Series	Pan-Lug®
Package	Bulk
Terminal Type	Lug, Grounding
Terminal Style	Single Stud Hole
Tab Thickness	0.250" (6.35mm)
Length - Overall	3.000" (76.20mm)
Width - Outer Edges	1.380" (35.05mm)
Mounting Type	Free Hanging (In-Line)
Termination	Screw
Wire Gauge	500MCM (kcmil)-4 AWG
Insulation	Non-Insulated
Features	With Screw
Contact Material	Copper Alloy
Diameter - Ring ID	0.530" (13.46mm)
Base Product Number	PNL-500
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	07498363255,298-15562,PNL-500-3-ND
Standard Package	1
Win Source Part Number	1083546-PNL-500-3
Ultra Librarian 3D Model	Ultra Librarian PNL-500-3 CAD Model

Alternative Products

Description

The Panduit Corp PNL-500 is a non-insulated single stud hole terminal type lug, grounding connector.

Width: 1.380 inches
Overall Length: 3.000 inches
Wire Gauge: 500MCM (kcmil)-4 AWG
Tab Thickness: 0.250 inches
Contact Material: Copper alloy
Packaging: Bulk
Mounting Type: Free hanging (in-line)
Alternative Parts: 2-33457-2, LCA8-14-L, LCA6-14-L, ML4-CY, 19221-0248 and 19221-0251
ECCN: EAR99
REACH: affected
HTSUS: 8536.90.4000
