Same model may have multiple batches, images only for reference.

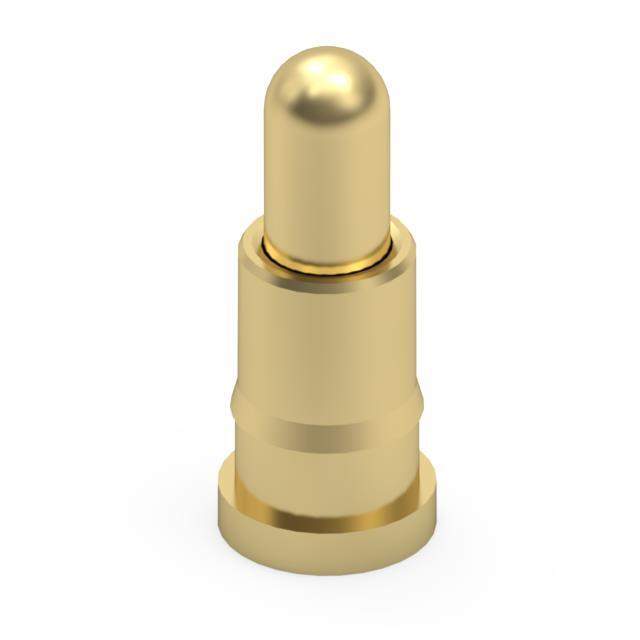

0900-1-15-20-75-14-11-0 Real Image
Same model may have multiple batches, images only for reference.

0900-1-15-20-75-14-11-0

Part No 0900-1-15-20-75-14-11-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Contacts, Spring Loaded and Pressure
Description CONTACT SPRING LOADED SMD GOLD / Contact Spring Surface Mount
Datasheet
0900-1-15-20-75-14-11-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Contacts, Spring Loaded (Pogo Pins), and Pressure
Mfr Mill-Max Manufacturing Corp.
Series 0900
Package Bulk
Contact Type Sleeve & Plunger (Pogo Pins)
Mounting SMD (SMT)
Maximum Working Height 0.177" (4.50mm)
Recommended Working Height 0.150" (3.80mm)
Minimum Working Height 0.122" (3.10mm)
Pad Layout Dimension Circular - 0.072" (1.83mm)
Operating Force - Initial 25gf
Operating Force - Mid Compression 60gf
Plunger Size 0.042" (1.07mm) Dia
Mating Cycles 1000000
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Current Rating (Amps) 2A
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 0900-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names ED9001,0900-1-00-00-00-00-11-0,0900100000000110,0900115207514110,9.00115E+14,900100000000110
Standard Package 500
Win Source Part Number 1173584-0900-1-15-20-75-14-11-0
Ultra Librarian 3D Model Ultra Librarian 0900-1-15-20-75-14-11-0 CAD Model

Description

The 0900 series spring loaded contacts from Mill-Max Manufacturing Corp. are a high-quality solution for SMT applications.

  • Contact Material: Copper Alloy
  • Contact Finish: Gold Finish of 20.0μin (0.51μm)
  • Current Rating: 2A
  • Maximum Working Height: 0.177" (4.50mm)
  • Circular Pad Layout Dimension: 0.072" (1.83mm)
  • Mating Cycles: 1,000,000
  • Operating Force: 25gf initial and 60gf mid compression
  • Plunger Size: 0.042" (1.07mm) diameter
