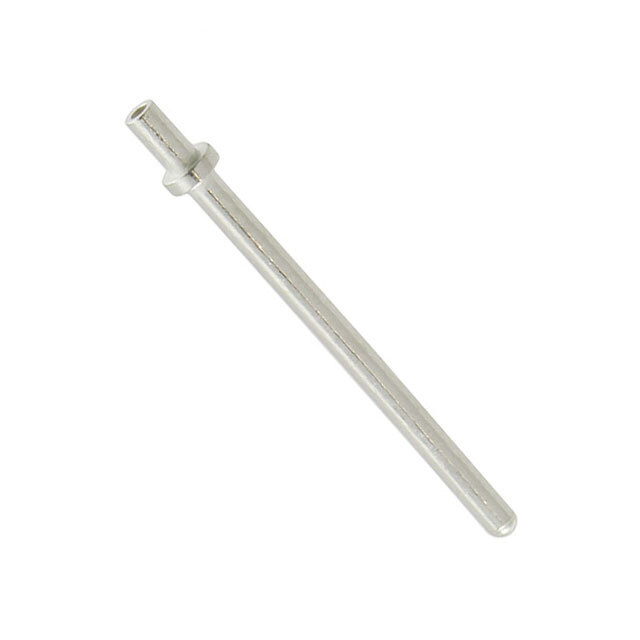

Same model may have multiple batches, images only for reference.
3123-2-00-80-00-00-08-0 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

3123-2-00-80-00-00-08-0

Part No 3123-2-00-80-00-00-08-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PC PIN CIRC 0.040DIA TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Mill-Max Manufacturing Corp.
Packaging Bulk
Terminal Type PC Pin
Terminal Style Single End
Pin Size - Above Flange 0.040" (1.02mm) Dia
Length - Above Flange 0.580" (14.73mm)
Length - Below Flange 0.082" (2.08mm)
Length - Overall 0.682" (17.32mm)
Flange Diameter 0.070" (1.77mm)
Mounting Hole Diameter 0.043" (1.09mm)
Mounting Style Through Hole
Termination Swage
Insulation Non-Insulated
Board Thickness 0.062" (1.57mm)
Contact Material Brass Alloy
Contact Finish Tin
Contact Finish Thickness 200.0μin (5.08μm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801050-3123-2-00-80-00-00-08-0
Ultra Librarian 3D Model Ultra Librarian 3123-2-00-80-00-00-08-0 CAD Model

Description

The Mill-Max Manufacturing Corp. 739380 is a through-hole swage PC pin terminal.

  • Material: Brass Alloy
  • Contact Finish: Tin
  • Contact Finish Thickness: 200.0μin (5.08μm)
  • Length: 0.682" (17.32mm)
  • Mounting Hole Diameter: 0.043" (1.09mm)
  • Terminal Style: Single End
  • Insulation: Non-Insulated
  • Supply and Demand Status: Sufficient
