Same model may have multiple batches, images only for reference.

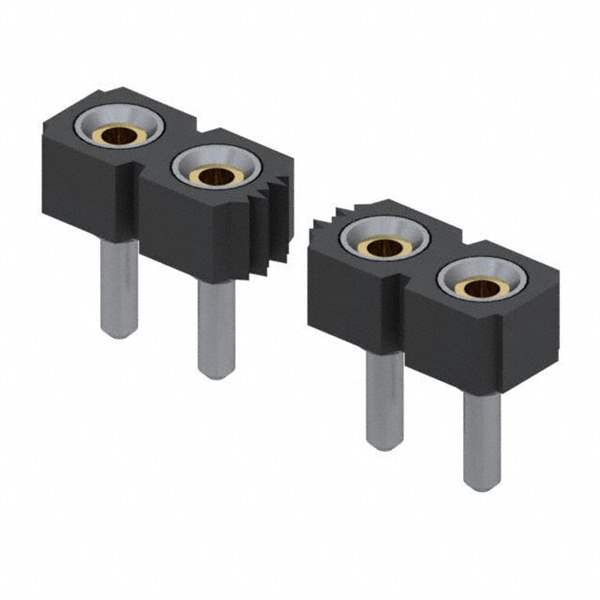

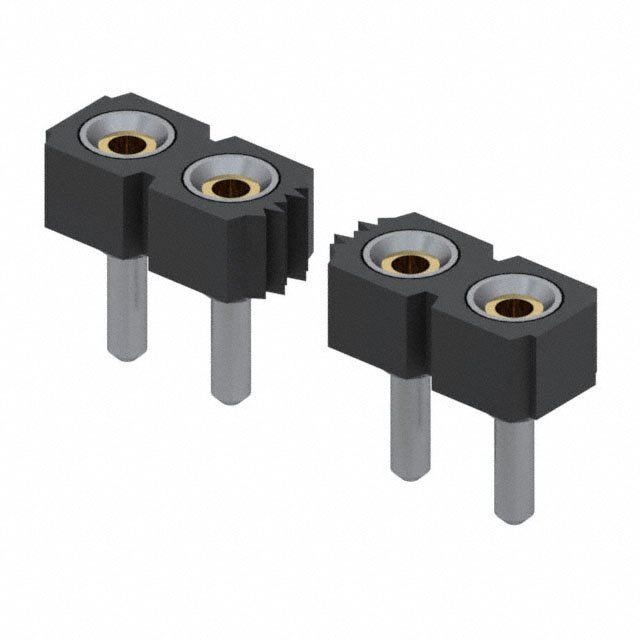

315-43-114-41-003000

Name: 315-43-114-41-003000
Brand: Mill-Max Manufacturing Corp.
SKU: 772327
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	315-43-114-41-003000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN SOCKET 14PIN ULTRA LOPRO / Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Series	315
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	14
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	100μin (2.54μm)
Insulation Color	Black
Insulation Height	0.071" (1.80mm)
Contact Length - Post	0.095" (2.41mm)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating	3A
Voltage Rating	100V, 150VDC
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape	Circular
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	200μin (5.08μm)
Win Source Part Number	772327-315-43-114-41-003000
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1
Family Name	315
Introduction Date	April 11, 2006
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian 315-43-114-41-003000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. 315-43-114-41-003000 is a board to board style connector with 14 positions and a push-pull fastening type.

Contact Type: female socket
Soldering: yes
Voltage Rating: 100V, 150VDC
Current Rating: 3A
Insulation Material: polycyclohexylenedimethylene terephthalate (PCT), polyester
Flammability Rating: UL94 V-0
Estimated EOL Date: 2027
ECCN: EAR99
