Same model may have multiple batches, images only for reference.

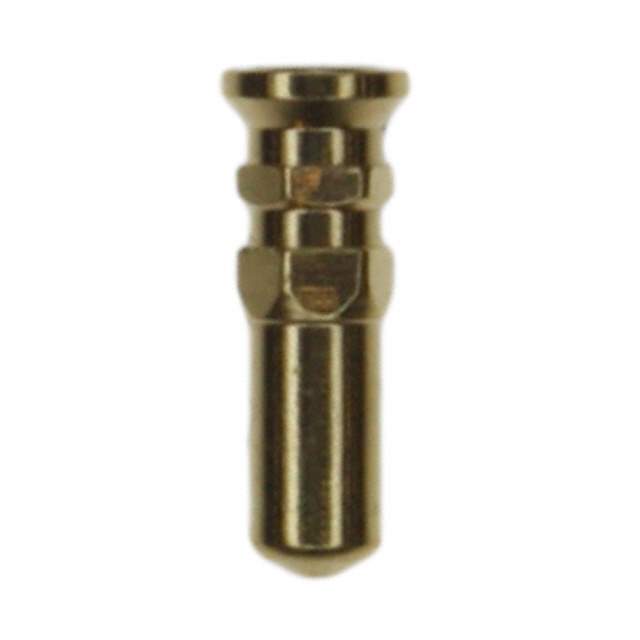

0553-1-15-15-11-27-10-0 Real Image
Same model may have multiple batches, images only for reference.

0553-1-15-15-11-27-10-0

Part No 0553-1-15-15-11-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .015-.020 HEX / Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) No Tail Press-Fit, Hex
Datasheet
0553-1-15-15-11-27-10-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>PC Pin Receptacles, Socket Connectors
Manufacturer Mill-Max Manufacturing Corp.
Packaging Bulk
Tail Type No Tail
Termination Press-Fit, Hex
Length - Overall 0.140" (3.56mm)
Accepts Pin Diameter 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Pin Hole Diameter 0.031" (0.79mm)
Mounting Hole Diameter 0.041" (1.04mm)
Flange Diameter 0.055" (1.40mm)
Socket Depth 0.124" (3.15mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 0553-1
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0553-115151127100,0553115151127100,00553115151127100,ED90097,0553-115151127100INACTIVE,0553-115151127100-ND,553115151127100
Standard Package 500
Win Source Part Number 1333563-0553-1-15-15-11-27-10-0
Ultra Librarian 3D Model Ultra Librarian 0553-1-15-15-11-27-10-0 CAD Model

Description

The 0553-1-15-15-11-27-10-0 PC Pin Receptacle is a terminal connector that belongs to the Connectors, Interconnects>Terminals>PC Pin Receptacles, Socket Connectors category.

  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: Beryllium Copper
  • Overall Length: 0.140" (3.56mm)
  • Pin Diameter: 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
  • Mounting Hole Diameter: 0.041" (1.04mm)
  • Flange Diameter: 0.055" (1.40mm)
  • Socket Depth: 0.124" (3.15mm)
  • Pin Hole Diameter: 0.031" (0.79mm)
  • Temperature Range: -55°C to 125°C
  • Packaging: Bulk
